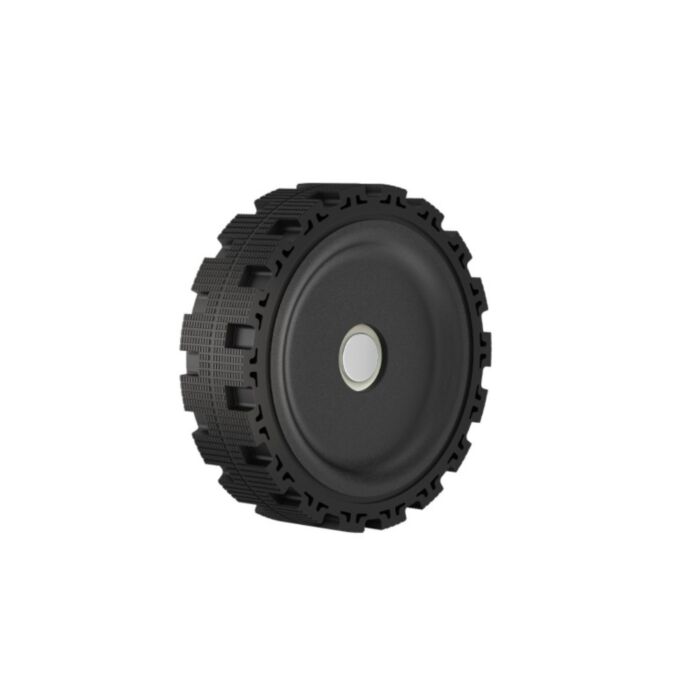

The DDSM400 Direct Drive Servo Motor is a versatile, low-noise, all-in-one hub motor designed for RC cars, robot DIY projects, and other applications requiring precision and reliability. This advanced motor integrates cutting-edge direct drive technology, eliminating the need for a traditional reducer, resulting in enhanced efficiency, compactness, and performance.
The DDSM400 features a high-reliability Permanent Magnet Synchronous Motor (PMSM) that integrates an outer rotor brushless motor, encoder, and servo. This combination delivers unparalleled precision and performance for robotics applications.
No-load speed | 400 ±20 RPM | Operating temperature | -5°C ~ 40°C |
No-load current | 0.25A | Total weight | 236g |
Rated speed | 100 RPM | Encoder resolution | 12-bit |
Rated torque | 0.15 Nm | Rated current | 0.24 ±0.07 A |
Locked-rotor torque | 0.3 Nm | Noise level | ≤40 dB(A) |
Torque constant | 0.3 Nm/A | Input voltage | 25.2V DC |
