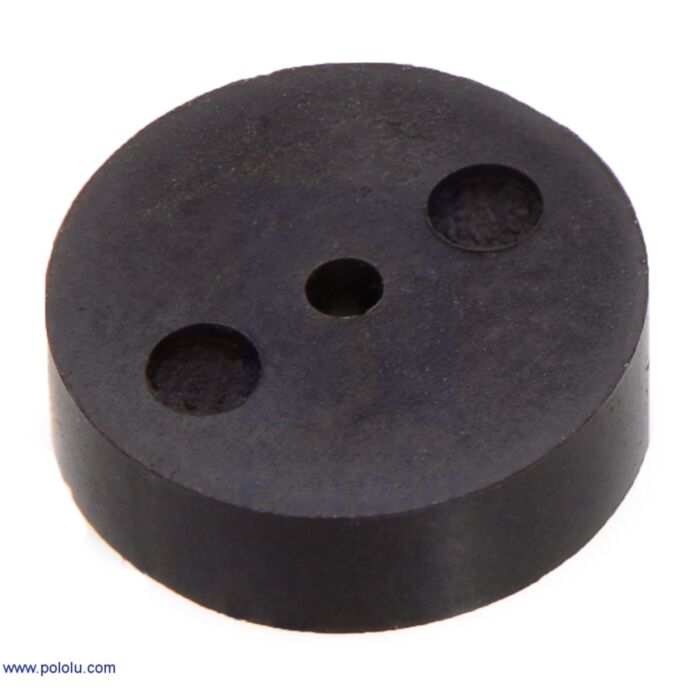

Magnetic Encoder Disc for Micro Metal Gearmotors, 12 CPR

SKU: POLOLU-2599 Brand: Pololu

These magnetic discs can be used with Pololu's micro metal gearmotors with extended motor shafts as part of a quadrature encoder system that offers 12 counts per revolution. Appropriate Hall Effect sensors, such as those in Pololu's magnetic encoder pair kits, are required to complete the system. These discs are bulk-packaged and must be ordered in multiples of five. Pololu will package these to order and generally expect orders of up to a few hundred units to ship within a day.

$1.50 AUD, inc GST

$1.36 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 02 and Jan 06

Quantity Discounts:

10-25 $1.31 (exc GST)
25+ $1.27 (exc GST)

Magnetic Encoder Disc for Micro Metal Gearmotors, 12 CPR is available to buy in increments of 5

These are the same magnetic discs Pololu include with Pololu's magnetic encoder pair kits for micro metal gearmotors. The disc consists of six evenly spaced magnetic poles (three north-south pairs), which allows for an encoder system that offers 12 counts per revolution.

They are 2 mm thick with a 7.65 mm diameter, and the hole through the center enables them to securely press-fit onto the 1mm-diameter motor shafts of Pololu's micro metal gearmotors with extended motor shafts.

Dimensions of the Magnetic Encoder Disc for Micro Metal Gearmotors. Units are mm over [inches].

This diagram is also available as a downloadable PDF (74k pdf). A 3D model (16k step) is also available.

This bulk-packaged product is primarily intended for those wanting to integrate these encoder discs into their own systems in higher volumes, but the minimum quantity is set to five for those who want to just get a few as replacements or samples. For order quantities beyond what Pololu have in stock, please contact us for lead time estimates.

People often buy this product together with:

Pololu Micro Metal Gearmotor Bracket Pair - Black

100:1 Micro Metal Gearmotor HP 6V with Extended Motor Shaft

Magnetic Encoder Pair Kit for Micro Metal Gearmotors, 12 CPR, 2.7-18V

Dimensions

Size:	7.65 mm outer diameter × 2 mm thick (1.0 mm ID)
Weight:	0.3 g

General specifications

Poles:	6
Encoder resolution:	12 CPR¹

Notes:

1: When counting both edges of both channels with a quadrature encoder.

File downloads

Dimension diagram of the Magnetic Encoder Disc for Micro Metal Gearmotors (74k pdf)
3D model of the Magnetic Encoder Disc for Micro Metal Gearmotors (16k step)

This product is listed in:

Sensors>Encoders
