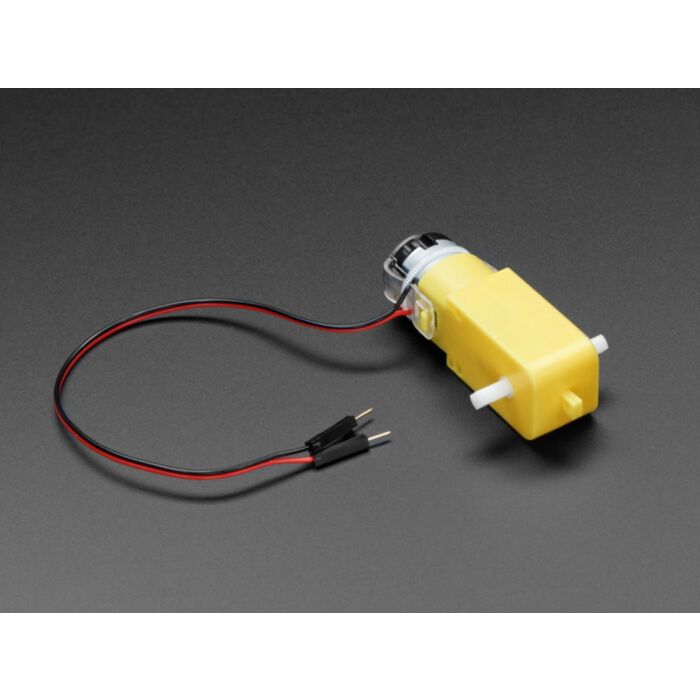

DC Gearbox Motor - TT Motor - 200RPM - 3 to 6VDC

Rating:
100% of 100
SKU: ADA3777 Brand: Adafruit
Perhaps you've been assembling a new robot friend, adding a computer for a brain and other fun personality touches. Now the time has come to let it leave the nest...
$7.80 AUD, inc GST
$7.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 2nd of Apr

Quantity Discounts:

  • 10-25 $6.81 (exc GST)
  • 25+ $6.59 (exc GST)
- +

26 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Perhaps you've been assembling a new robot friend, adding a computer for a brain and other fun personality touches. Now the time has come to let it leave the nest and fly on its own wings– err, wheels!

These durable (but affordable!) plastic gearbox motors (also known as 'TT' motors) are an easy, low-cost way to get your projects moving. This is a TT DC Gearbox Motor with a gear ratio of 1:48, and it comes with 2 x 200mm wires with breadboard-friendly 0.1" male connectors. Perfect for plugging into a breadboard or terminal blocks.

You can power these motors with 3VDC up to 6VDC, they'll of course go a little faster at the higher voltages. Adafruit grabbed one motor and found these stats when running it from a bench-top supply

  • At 3VDC Adafruit measured 150mA @ 120 RPM no-load, and 1.1 Amps when stalled
  • At 4.5VDC Adafruit measured 155mA @ 185 RPM no-load, and 1.2 Amps when stalled
  • At 6VDC Adafruit measured 160mA @ 250 RPM no-load, and 1.5 Amps when stalled

Note that these are very basic motors, and have no built-in encoders, speed control or positional feedback. Voltage goes in, rotation goes out! There will be variation from motor to motor, so a separate feedback system is required if you need precision movement.

Comes 1 x per order, with just the motor + wires. You cannot drive these directly from a microcontroller, a high-current motor driver is required! Adafruit recommend Adafruit's DRV8833 motor driver for these motors, as it works well down to 3V and can be set up with current limiting since the stall current on these can get high. The TB6612 can also be used, it's on Adafruit's shields and wings, but you'll need to supply at least 4.5V - which is what you'll likely want to run these motors at anyhow!

Adafruit have a range of wheels, add-ons and accessories for these motors so you can bling out your bot just the way you like.

Technical Details

  • Rated Voltage: 3~6V
  • Continuous No-Load Current: 150mA +/- 10%
  • Min. Operating Speed (3V): 90+/- 10% RPM
  • Min. Operating Speed (6V): 200+/- 10% RPM
  • Torque: 0.15Nm ~0.60Nm
  • Stall Torque (6V): 0.8kg.cm
  • Gear Ratio: 1:48
  • Body Dimensions: 70 x 22 x 18mm
  • Wires Length: 200mm & 28 AWG
  • Weight: 30.6g

Product Weight: 30.6g / 1.1oz
