Cygbot CygLiDAR D2

SKU: SEN-26817 Brand: Sparkfun

Cygbot’s CygLiDAR D2 is a compact, solid-state dual-mode ToF LiDAR sensor capable of generating both 2D range maps and 3D point cloud data. With no moving...

$369.95 AUD, inc GST

$336.32 AUD, exc GST

Available with a lead time
Expect dispatch between Jun 15 and Jun 19

Cygbot’s CygLiDAR D2 is a compact, solid-state dual-mode ToF LiDAR sensor capable of generating both 2D range maps and 3D point cloud data. With no moving parts, the D2 offers high durability in vibration-prone or harsh indoor environments. Its lightweight design and wide field of view make it well-suited for integration into space-constrained systems such as drones, AMRs, or industrial automation platforms.

The CygLiDAR D2 features a 120° horizontal field of view in both 2D and 3D modes and a 65° vertical field of view for 3D data acquisition. The 2D mode provides a detection range of up to 8 m and operates at a frame rate of 20 Hz, while the 3D mode offers a range of up to 2 m using Dynamic Range Mode (DRM) and operates at 10 Hz. 2D angular resolution is 0.75°, and 3D depth resolution is output at 160×60 pixels. Depth accuracy is specified at < ±1%.

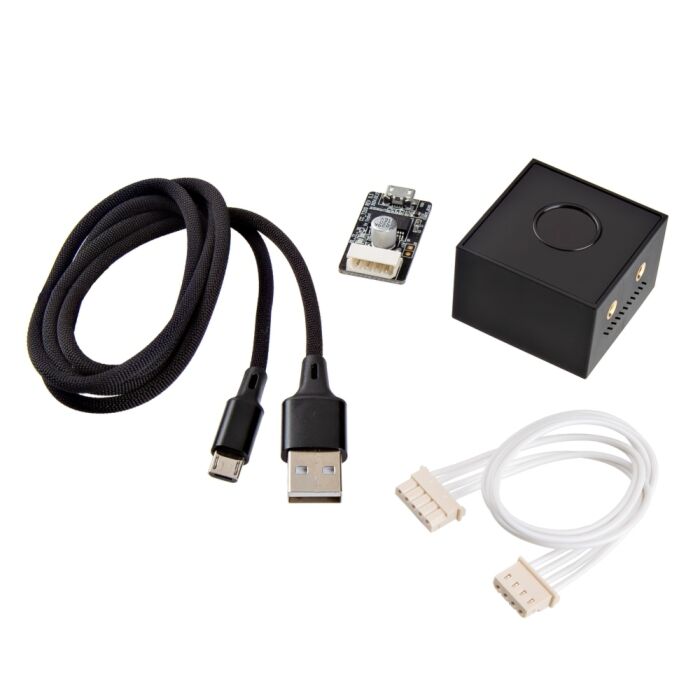

The sensor operates over UART (3.3 V TTL) at baud rates from 57,600 to 3,000,000 bps. A USB-to-UART converter and connector cable are included to support plug-and-play use with Windows PCs. The CygLiDAR Viewer software provides a fast way to visualize 2D and 3D data for evaluation and integration.

Features & Specs

- 2D Detection Range: < 200 mm – 8000 mm
3D Detection Range: 50 mm – 2000 mm (Dynamic Range Mode)
Accuracy: < ±1%
Field of View:
- Horizontal (2D/3D): 120°
- Vertical (3D): 65°
Resolution:
- 2D Angular: 0.75°
- 3D Depth Map: 160 × 60 pixels
Measurement Speed:
- 2D: 20 Hz
- 3D: 10 Hz
Wavelength: NIR 808 nm (Laser Diode and LED)
Interface: UART TTL (3.3 V), 57,600 – 3,000,000 bps
Operating Temperature: –20°C to 60°C
Dimensions: 37.4 × 37.4 × 24.5 mm
Weight: 28 g
Best suited for indoor use
Certifications: CE, FCC, KC

Documentation

N/A
