Circuit Playground TFT Gizmo - Bolt-on Display + Audio Amplifier

SKU: ADA4367 Brand: Adafruit
Coming soon! Extend and expand your Circuit Playground projects with a bolt on TFT Gizmo that lets you add a lovely color display in a sturdy and reliable fashion...
Special Price $35.40 AUD, inc GST
Regular Price $41.65 AUD, inc GST
$32.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 18th of Jul

- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

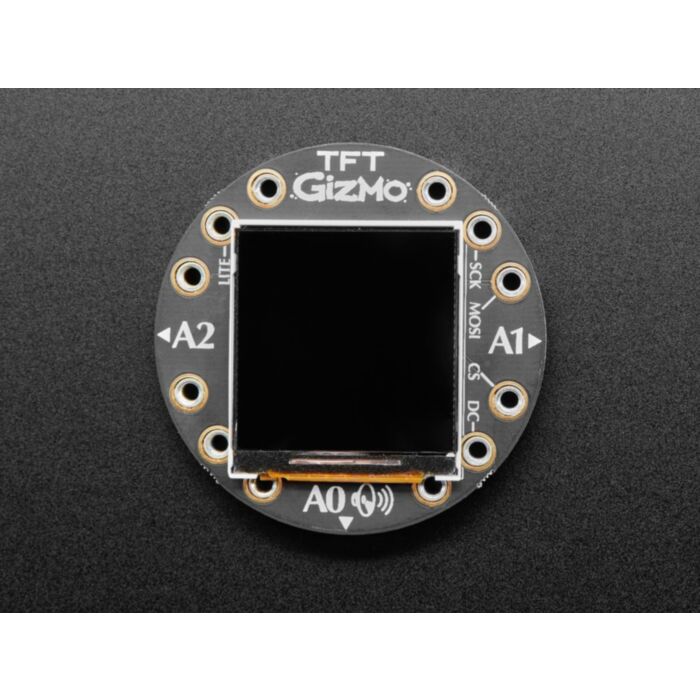

Extend and expand your Circuit Playground projects with a bolt on TFT Gizmo that lets you add a lovely color display in a sturdy and reliable fashion. This PCB looks just like a round TFT breakout but has permanently affixed M3 standoffs that act as mechanical and electrical connections.

Once attached you'll get a 1.54" 240x240 IPS display with backlight control, two 3-pin STEMMA connectors for attaching NeoPixel strips or servos, and a Class D audio amplifier with a Molex PicoBlade connector that can plug one of Adafruit's lil speakers.

This is a great companion for Adafruit's Circuit Playground Express or Bluefruit boards thanks to their fast SPI hardware speeds, and works in Arduino and CircuitPython. If you're using this with Circuit Playground Express and CircuitPython, you won't be able to do a lot because there isn't a ton of memory - mostly just displaying the REPL and maybe running an image slideshow. For CircuitPython use, the Bluefruit is recommended and works really great!

You can use it with the Circuit Playground Classic in Arduino but it won't be very fast, as you have to bitbang the SPI - and the display has a lot of pixels - so it's not recommended. You'll have a very slow display.

Comes with a PCB that has pre-soldered standoffs attached, and 12x M3 screws for attachment. Fits all Circuit Playgrounds but like Adafruit mentioned earlier, the Express and Bluefruit are recommended.

Technical Details

Revision History:

  • As of Oct 30, 2019 - we are now shipping wtih 8mm standoffs instead of 6mm! This lets you put a lipoly battery in between the Circuit Playground and Gizmo!

Product Dimensions: 53.3mm x 53.3mm x 9.4mm / 2.1" x 2.1" x 0.4"

Product Weight: 23.0g / 0.8oz

    RoHS 2 2011 65 EU Compliant
    RoHS 2 2015 863 EU Compliant
