Charge Pump Voltage Inverter: 1.8-5.3V, 60mA

Rating:

100% of 100

SKU: POLOLU-2839 Brand: Pololu

This tiny voltage inverter generates a negative output voltage corresponding to the voltage provided on its input, which can be from 1.8 V to 5.3 V. The ...

$5.05 AUD, inc GST

$4.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 14th of May

Quantity Discounts:

10-25 $4.45 (exc GST)
25+ $4.36 (exc GST)

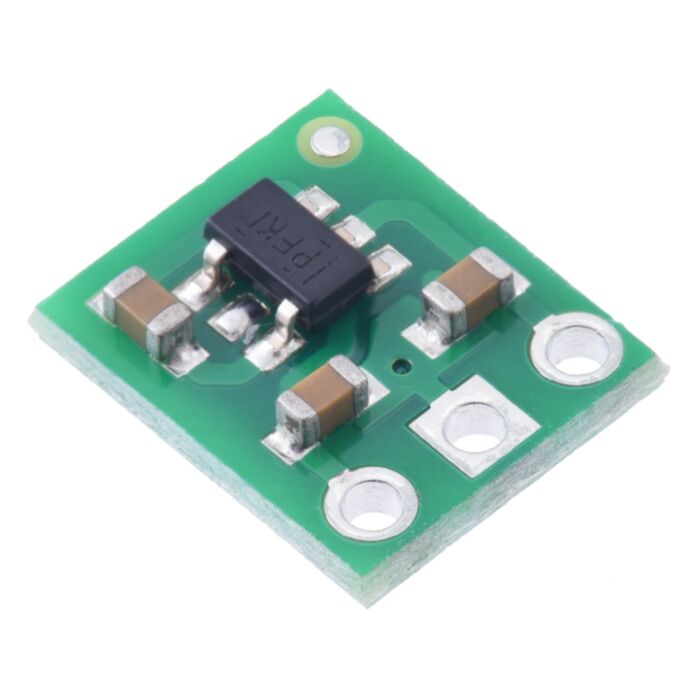

This board is a charge pump voltage inverter that converts an input voltage between 1.8 V and 5.3 V to a corresponding negative output voltage, with a typical efficiency of over 80%. The inverter can deliver a continuous output current of 60 mA across most of its operating range, making it a simple solution for applications requiring a lower-power negative supply, including sensor biasing and bipolar op-amp circuits.

Unlike a voltage regulator, which produces a constant output voltage from a range of input voltages, this inverter does not have a set output voltage; the module’s negative output voltage varies proportionally to the positive input voltage that it receives. However, you can get a regulated negative voltage by powering the inverter with a pre-regulated supply voltage. For example, with a fixed 5 V supply, the module produces a fixed -5 V on its output; with a 3.3 V input, the output is -3.3 V. Note that the magnitude of the output voltage decreases as the output current increases; please see the graphs at the bottom of this page for a more detailed characterization.

Features

Input voltage: 1.8 V to 5.3 V
Negative output voltage is inverted from input
Typical continuous output current: 60 mA
<200 µA typical no-load quiescent current

Using the inverter

Connections

The voltage inverter has three connections: input voltage (VIN), ground (GND), and output voltage (VOUT). The three connections are labeled on the back side of the PCB, and they are arranged with a 0.1" spacing along the edge of the board for compatibility with solderless breadboards, connectors, and other prototyping arrangements that use a 0.1" grid. You can solder wires directly to the board or solder in either the 3×1 straight male header strip or the 3×1 right-angle male header strip that is included.

The input voltage, VIN, should be between 1.8 V and 5.3 V. The output voltage, VOUT, is inverted from the input (nominally, VOUT = -VIN).

Typical Efficiency and Output Current

The efficiency of this inverter, defined as (Power out)/(Power in), is an important measure of its performance, especially when battery life or heat are concerns. As shown in the graph below, this voltage converter typically has an efficiency of 80% to 90%.

The maximum achievable output current is at least 60 mA continuous across most of the voltage inverter’s operating range, but at input voltages below about 2.2 V, the available output current is reduced (down to about 40 mA at 1.8 V in).

Output Voltage Drop

The output voltage of this inverter is not regulated; it is close to the exact negative of the input voltage when the output current is low, but as the load increases, the magnitude of the output voltage decreases (the output voltage rises toward 0 V) as shown in the graph below.

People often buy this product together with:

Wires with Pre-Crimped Terminals 50-Piece 10-Color Assortment F-F 6"

Dimensions

Size:	0.3" × 0.35" × 0.09"¹
Weight:	0.17 g¹

General specifications

Minimum operating voltage:	1.8 V
Maximum operating voltage:	5.3 V
Maximum output current:	60 mA
Reverse voltage protection?:	N

Identifying markings

PCB dev codes:	reg27a
Other PCB markings:	0J12997

Notes:

1: Without included optional headers.

File downloads

Dimension diagram of the Charge Pump Voltage Inverter: 1.8-5.3V, 60mA (188k pdf)
3D model of the Charge Pump Voltage Inverter: 1.8-5.3V, 60mA (3MB step)
Drill guide for the Charge Pump Voltage Inverter: 1.8-5.3V, 60mA (14k dxf)

This DXF drawing shows the locations of all of the board’s holes.
