CAP1188 - 8-Key Capacitive Touch Sensor Breakout - I2C or SPI

Rating:
100% of 100
SKU: ADA1602 Brand: Adafruit
Add lots of touch sensors to your next microcontroller project with this easy-to-use 8-channel capacitive touch sensor breakout board, starring the CAP1188. This...
$15.25 AUD, inc GST
$13.86 AUD, exc GST

Available with a lead time
Expect dispatch between Oct 21 and Oct 24

Quantity Discounts:

  • 10-25 $13.31 (exc GST)
  • 25+ $12.89 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

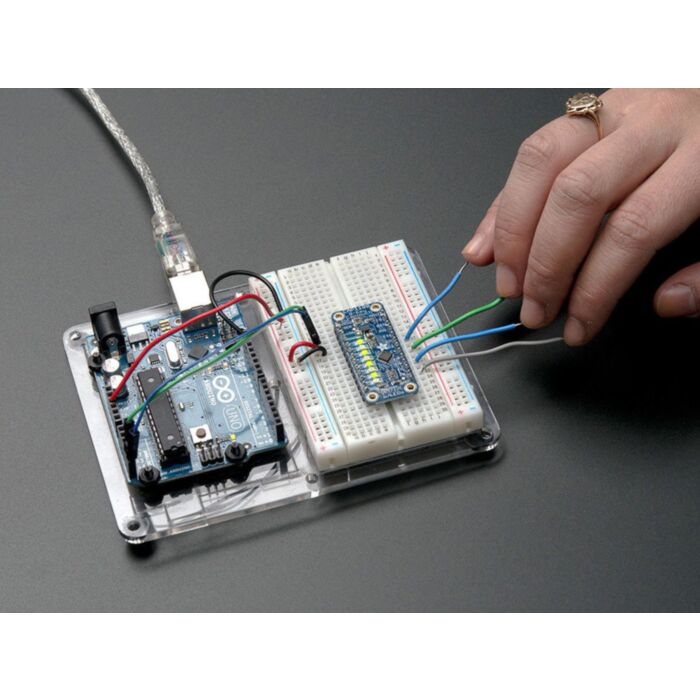

Add lots of touch sensors to your next microcontroller project with this easy-to-use 8-channel capacitive touch sensor breakout board, starring the CAP1188. This chip can handle up to 8 individual touch pads, and has a very nice feature that makes it stand out for us: it will light up the 8 onboard LEDs when the matching touch sensor fires to help you debug your sensor setup.

The CAP1188 has support for both I2C and SPI, so it easy to use with any microcontroller. If you are using I2C, you can select one of 5 addresses, for a total of 40 capacitive touch pads on one I2C 2-wire bus. Using this chip is a lot easier than doing the capacitive sensing with analog inputs: it handles all the filtering for you and can be configured for more/less sensitivity.

Comes with a fully assembled board, and a stick of 0.1" header so you can plug it into a breadboard. For contacts, we suggest using copper foil, then solder a wire that connects from the foil pad to the breakout.

Getting started is a breeze with Adafruit's Arduino library and tutorial. You'll be up and running in a few minutes, and if you are using another microcontroller, its easy to port Adafruit's code.

//www.youtube.com/embed/Rgso9ddjftM?rel=0&start=95&autoplay=0

CAP1188 - 8-Key Capacitive Touch Sensor Breakout - I2C or SPI (1:35)

Technical Details

  • Dimensions: 42mm x 18mm (1.6" x 0.7")
  • Weight: 2.5g

EagleCAD PCB files, Fritzing object, datasheets and more in the tutorial
