Board Edge Mounting Kit - Pack of 4

SKU: ADA1116

$5.95 AUD, inc GST

More Views

Board Edge Mounting Kit - Pack of 4
5.95 AUD

SKU: ADA1116

$5.95 AUD, inc GST
2 reviews 0 5 5
124 units ship in 4 to 7 days (delivered by Mon, 5th of Jun)
Shipping Offer

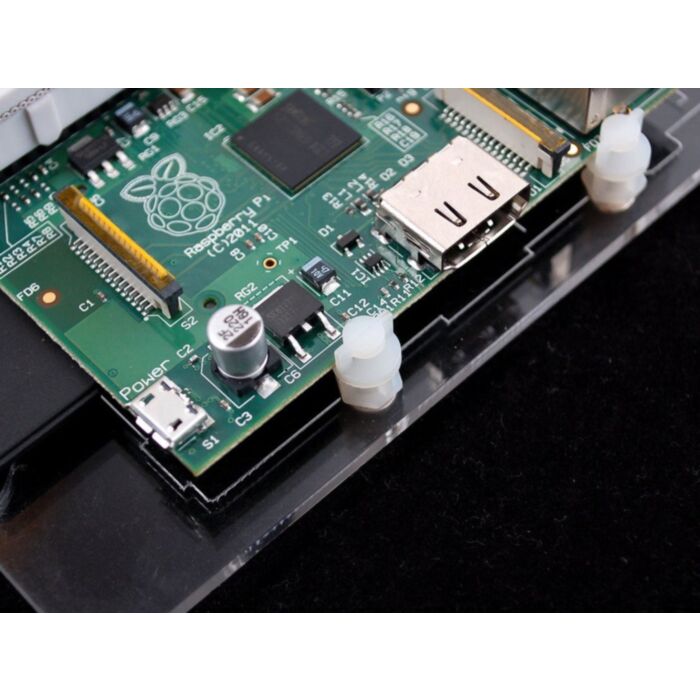

Having difficulty attaching a PCB? This kit is especially useful when there are no mounting holes - as with the original Raspberry Pi. Instead of gluing, taping, epoxying, etc. use these elegant standoffs. They have these round hook things that are designed to grip standard 0.062" thickness PCBs either by the edge or by the corner.

Comes in a pack of 4 with matching #6 thread forming screws. Ideal for use with up to 1/8" mounting material. Adafruit have these as part of the Pi Dish kit and they work really well!

Technical Details

Datasheet for the nylon standoff Values for this item from the datasheet match part TCEHCBS-4-01: A: 1/4" (6.4mm) B: 13/64" (5.2mm)

This product is listed in:

Documentation and Resources:
Educational Workshops
  • Raspberry Pi Workshop for Beginners
  • Welcome to the Raspberry Pi Workshop for Beginners! Here you'll be able to follow along with our series of bite-sized videos that cover everything you'll need to know to get started with your Raspberry Pi, and start making awesome projects. My name...
  • Raspberry Pi IoT Doorbell
  • This Raspberry Pi, IoT Doorbell is basically a simple smart Door Bell, which takes a photo of whoever rings it, and emails it to the specified email address, and keeps all the photos in a folder. (along with going Ding-Dong). Any Problems, just leave a comment/start a discussion below....
  • Mass SD card Image Writer
  • We've built a mass SD card writer using a Raspberry Pi 3 Model B, some USB hubs and SD card readers. This beast has enough ports to write 49 SD cards at once! At Core Electronics, sometimes logistics hang-ups mean that suppliers cannot meet our demand for pre-flashed SD cards. During these periods we have to pick up the slack by manually imaging blank SD cards we source ourselves. Of course, this is a super-tedious process, and ...
  • Raspberry Pi OSMC - Custom Media Center
  • I wanted to upgrade my media center (RPi B+ with Xbian) to something a bit nicer, more stable and more accessible than just the RPi in a basic plastic case.

Product Comments


Customer Reviews

  1. Review by Peter verified purchaser
    Rating
    100

    Great idea for mounting small pc boards (Posted on 13/05/2016)

  2. Review by Stuart - Great solution to mounting boards! verified purchaser
    Rating
    100

    These were great for mounting some PCBs that I had where there was no pre-existing mounting holes or room for any to be new ones to be added. They keep everything looking neat too. (Posted on 4/05/2014)
