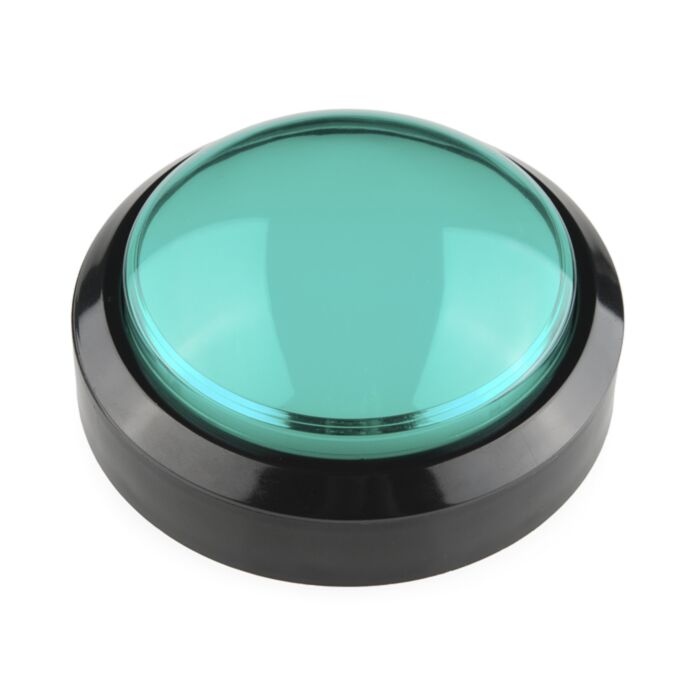

Big Dome Push Button - Green

SKU: COM-11275 Brand: Sparkfun
It’s the end of the world, and you need a button to press. This is it. A 100mm diameter (outside diameter) dome illuminated push button comes with an LED, securing nut and a pre-installed long life horizontal microswitch. Button can also be adjusted to a low profile button by removing the middle ring.
$21.90 AUD, inc GST
$19.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 14th of Oct

Quantity Discounts:

  • 10+ $19.61 (exc GST)
- +

5 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

It’s the end of the world, and you need a button to press. This is it. A 100mm diameter (outside diameter) dome illuminated push button comes with an LED, securing nut and a pre-installed long life horizontal microswitch. Button can also be adjusted to a low profile button by removing the middle ring.

The internal LED and microswitch have separate connections, so the LED behaviour depends on how you connect it.

Features:

  • LED indicator light runs at 12VDC
  • Bulb holder is easy to install or remove
  • 3 Terminals Button Actuator microswitch included (NO and NC contacts)
  • Microswitch reliability tested to 10,000,000 cycles
  • Microswitch can be replaced
  • Polycarbonate lens cap for optical clarity

Dimensions:

  • 100 mm Diameter x 72 mm Height
  • Net weight: 100grams
  • Mounting hole diameter: 24 mm

Documents:

This product is listed in:

Components & Parts>Switches>Arcade Switches
