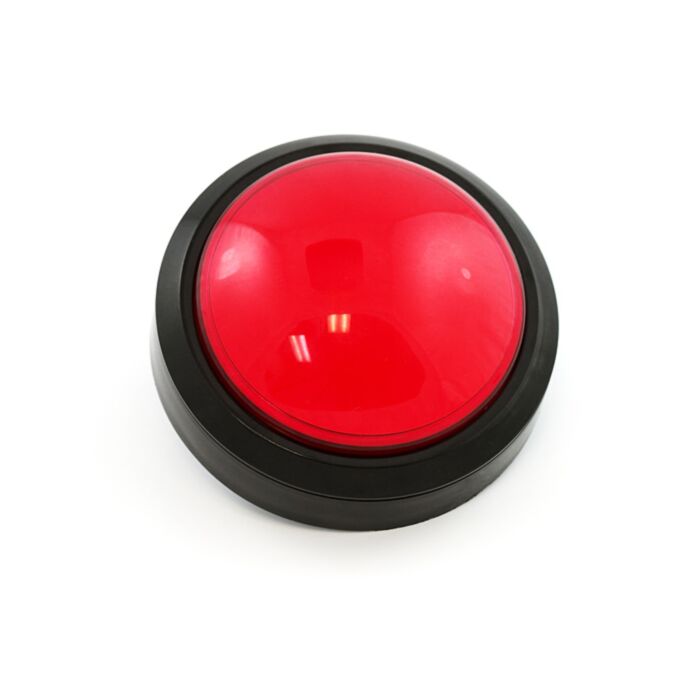

Big Dome Push Button - Red

Rating:

100% of 100

SKU: COM-09181 Brand: Sparkfun

It’s the end of the world, and you need a button to press. This is it. A 100mm diameter (outside diameter) dome illuminated push button comes with an LED, securing nut and a pre-installed long life horizontal microswitch. Button can also be adjusted to a low profile button by removing the middle ring.

$23.80 AUD, inc GST

$21.64 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $20.99 (exc GST)
25+ $20.55 (exc GST)

The internal LED and microswitch have separate connections, so the LED behaviour depends on how you connect it.

Features:

LED indicator light runs at 12VDC
Bulb holder is easy to install or remove
3 Terminals Button Actuator microswitch included (NO and NC contacts)
Microswitch reliability tested to 10,000,000 cycles
Microswitch can be replaced
Polycarbonate lens cap for optical clarity

Dimensions:

100 mm Diameter x 72 mm Height
Net weight: 100grams
Mounting hole diameter: 24 mm

Documents:

This product is listed in:

Components & Parts>Switches
Components & Parts>Switches>Arcade Switches
