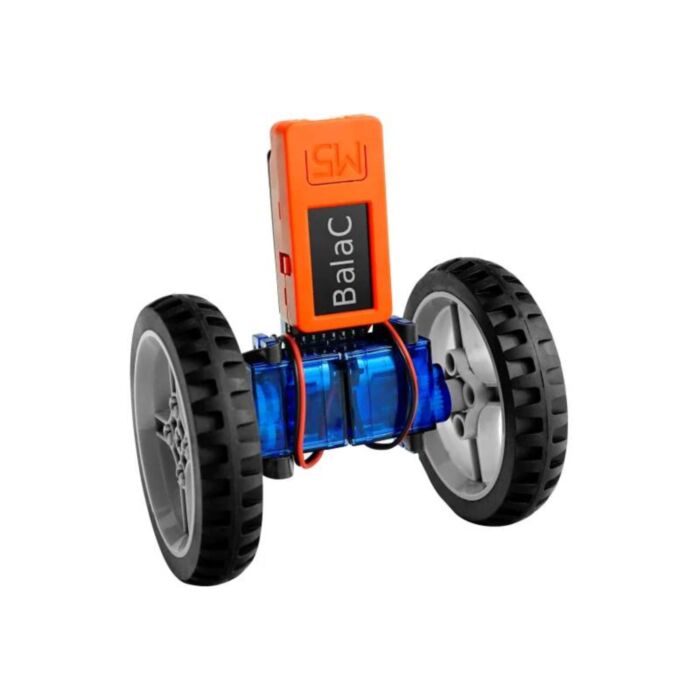

BALA-C PLUS ESP32 Self-Balancing Robot Kit

SKU: CE09268 Brand: M5Stack

BalaC PLUS is a DIY dual wheel self-balance Robot Car Kit…

$104.95 AUD, inc GST

$95.41 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 13 and Jan 24

Quantity Discounts:

5-10 $91.59 (exc GST)
10+ $88.73 (exc GST)

BalaC PLUS is a DIY dual wheel self-balance Robot Car Kit. BalaC PLUS consists of a M5StickC PLUS, STM32 chipset, two motor driver ICs, and a rechargeable/replaceable 16340 battery. It incorporates a light-weight design with 360° servos. And compatible with UIFlow graphic programing IDE. The BalaC PLUS maintains its balance with the help of MPU6886. The real-time compensation of the servos are controlled by calculating the offset value, to achieve the self-balance. A brick compatible design allows you to change with different tires. If you want to learn about PID, or need an interested programming toy product, BalaC PLUS will be a good choice.

Note: The M5StickC PLUS included in the package without PID code. Please flash it with Arduino or UIFlow example after receiving!

Product Features

Based on ESP32 + STM32
Detachable Design for DIY
Two-wheel Drive
Replaceable battery
Supported Platform:

Include

1x M5StickC PLUS
1x BalaC Base
2x Wheels
2x Wheel Connectors
2x 9G Servos
2x Elastics
2x Screws
1x Hex key
1x 16340 Battery
1x 10cm Type-C Cable

Specification

Specification	Parameter
ESP32-PICO-D4	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Servo	Rotation angle: 360 °; no load speed: 0.12 seconds / 60 degrees (4.8V)
Driver	L9110S
Slave	STM32F030F4P6
Communication protocol	I2C: 0x38
Battery	16340, 3.7V, 700mAh, Li-ions rechargeable
Net weight	120g
Gross weight	156g
Product Size	30100105mm
Package Size	14811842mm

Resources

Wiki for Bala-C Plus
