Audio Analyzer

SKU: DFR0126

$32.23 AUD, inc GST
$29.30 AUD, exc GST

More Views

Audio Analyzer
32.23 AUD

SKU: DFR0126

$32.23 AUD, inc GST
$29.30 AUD, exc GST

View our maker favourites for this product which are likely to be a great alternative.

In stock, with a short lead time. 145 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 20th of Dec with Express Post within Australia.

Introduction

This module features the MSGEQ7 graphic equalizer display filter.It will give your arduino ears. Sound is broken down into seven frequency bands and the peak level for each band can be read. The seven frequencies measured are as follows: 63Hz, 160Hz, 400Hz, 1kHz, 2.5kHz, 6.25kHz and 16kHz.

This module can be used to create sound visualizers, detect patterns in music or add sound activation to your microcontroller.

Applications

  • Detect patterns in music - make a robot dance!
  • Process the values read, then display on LEDs as a soothing visualization which changes with the music.
  • Pimp the interior lighting in your car so it pumps to the beat and twinkles to the high hats.
  • Create / listen for fingerprints in certain sounds - voice analysis.

Specification

  • Voltage:5V
  • Size:30x20mm
  • Weight: 5 grams

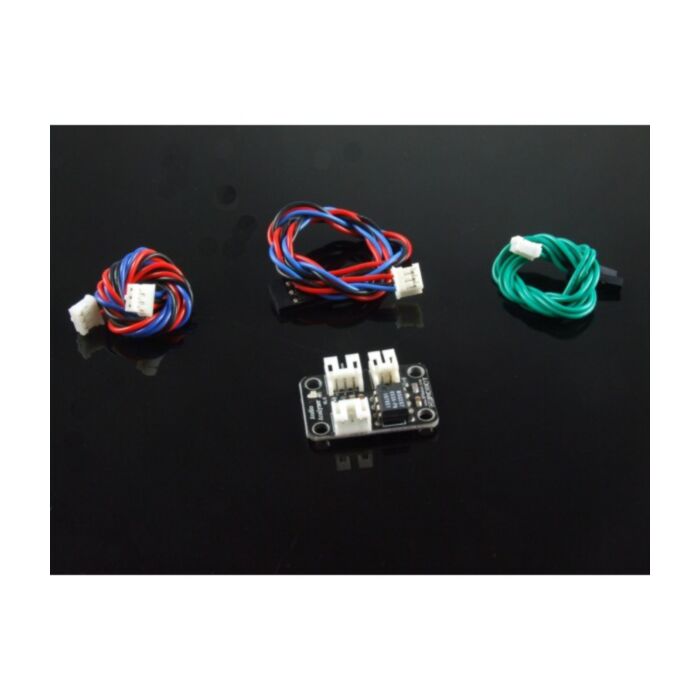

Shipping List

  • Audio Analyzer Module(1 Unit)
  • Analog Cable(2 units)
  • Digital Cable(1 unit)

Documents

Documentation and Resources:
