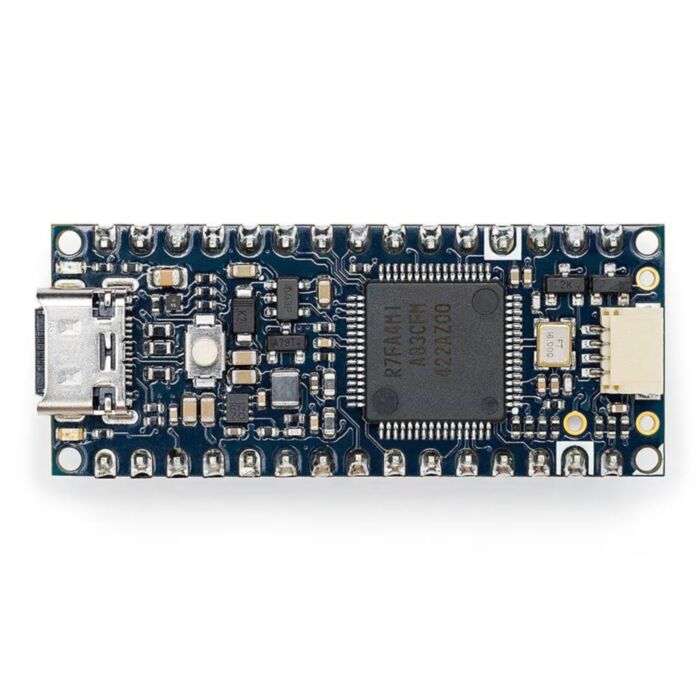

Small but capable, the Arduino Nano R4 with headers packs the Renesas RA4M1 (Arm Cortex-M4) into a tiny 45 x 18 mm board that is ready for breadboards and rapid prototyping.
Use it to make compact projects, connect Qwiic sensors for quick I2C expansion, or embed the board directly into custom PCBs for space-constrained products.
Technical Specifications
Item | Specification |
---|---|
Board | Arduino Nano R4 with headers |
Microcontroller | Renesas RA4M1 (Arm Cortex-M4) |
USB | USB-C programming port |
Digital I/O | 21 (all exposed I/O usable as digital) |
Analog inputs | 8 |
DAC | 1 (pin A0) |
PWM | 6 |
External interrupts | 2, 3 |
OpAmp pins | A1, A2, A3 |
VRTC | J5 |
UART | 1 |
I2C | 2 busses: 5V on A4/A5 and 3.3V via Qwiic (J3, J4) |
SPI | 1 |
CAN | 1 |
Operating voltage | +5 VDC |
Input voltage (VIN) | +6-21 VDC |
DC current per I/O pin | 8 mA |
Clock speed | Main core 48 MHz |
Memory (RA4M1) | Flash 256 kB, RAM 32 kB, EEPROM 8 kB |
Dimensions | 45 mm x 18 mm (length x width) |
On-board features | Qwiic connector, programmable RGB LED, pre-soldered headers, single-sided components |
