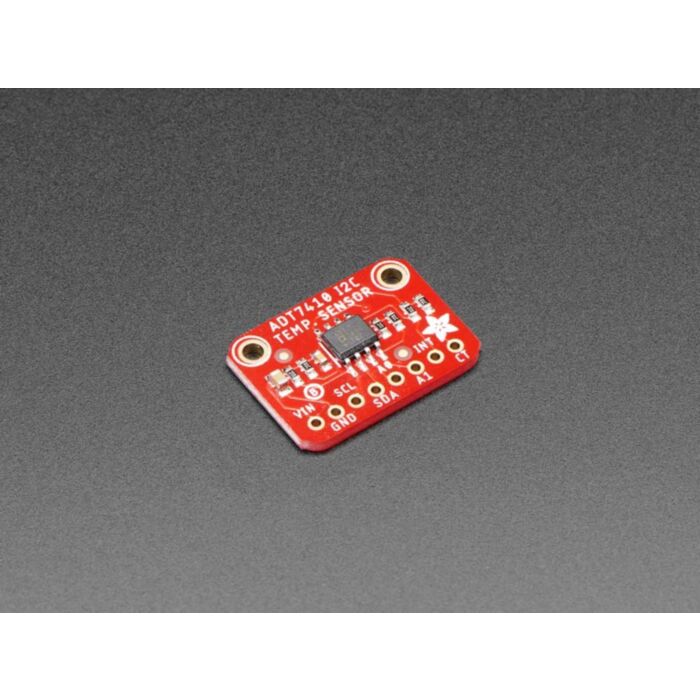

ADT7410 High Accuracy I2C Temperature Sensor Breakout Board

Rating:
100% of 100
SKU: ADA4089 Brand: Adafruit
Analog Devices, known for their reliable and well-documented sensor chips - has a high precision and high resolution temperature sensor on the market, and Adafruit have...
Special Price $10.16 AUD, inc GST
Regular Price $11.95 AUD, inc GST
$9.24 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 2nd of Apr

- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Analog Devices, known for their reliable and well-documented sensor chips - has a high precision and high resolution temperature sensor on the market, and Adafruit have got a breakout to make it easy to use! The Analog Devices ADT7410 gets straight to the point - it's an I2C temperature sensor, with 16-bit 0.0078°C temperature resolution and 0.5°C temperature tolerance. Wire it up to your microcontroller or single-board computer to get reliable temperature readings with ease

The ADT7410 has 2 address pins, so you can have up to 4 sensors on one I2C bus. There's also interrupt and critical-temperature alert pins. The sensor is good from 2.7V to 5.5V power and logic, for easy integration.

Adafruit have got both Arduino (C/C++) and CircuitPython (Python 3) libraries available so you can use it with any microcontroller like Arduino, ESP8266, Metro, etc or with Raspberry Pi or other Linux computers thanks to Blinka (our CircuitPython library support helper).

Each order comes with a fully tested and assembled breakout and some header for soldering to a PCB or breadboard. You'll be up and running in under 5 minutes!

Thanks to Digi-Key and Analog Devices for sponsoring the development of this breakout board - Adafruit have made the PCB "Digi-Key red" in their honor!

Technical Details

  • Wide input-voltage range: 2.7 V to 5.5 V
  • Up to 16-bit temperature resolution (0.0078°C per lsb), default is 13 bits (0.0625°C per lsb).
  • Highly accurate temperature tolerances:
    • ±0.5°C from -40°C to +105°C (2.7 V to 3.6 V)
    • ±0.4°C from -40°C to +105°C (3.0 V)
  • Configurable I2C address allows up to four sensors on the I2C bus
  • Operates over I2C, so only two shared lines required

Product Dimensions: 23.3mm x 16.5mm x 3.2mm / 0.9" x 0.6" x 0.1"

Product Weight: 1.4g / 0.0oz
