Adafruit Voice Bonnet for Raspberry Pi -Two Speakers + Two Mics

Rating:

100% of 100

SKU: ADA4757 Brand: Adafruit

Your Raspberry Pi computer is like an electronic brain - and with the Adafruit Voice Bonnet you can give it a mouth and ears as well! Featuring two microphones and two 1 Watt speaker outputs using a high quality I2S codec, this Pi add-on will work with any Raspberry Pi with a 2x20 connector - from the Pi Zero up to the Pi 4 and beyond

$51.25 AUD, inc GST

$46.59 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

6-12 $44.73 (exc GST)
12+ $43.33 (exc GST)

Recommended Essentials:

Adafruit NeoPixel LED Strip with 3-pin JST Connector - 60 LED/meter / 0.5 Meter

$27.75

Mono Enclosed Speaker - 3W 4 Ohm

$10.25

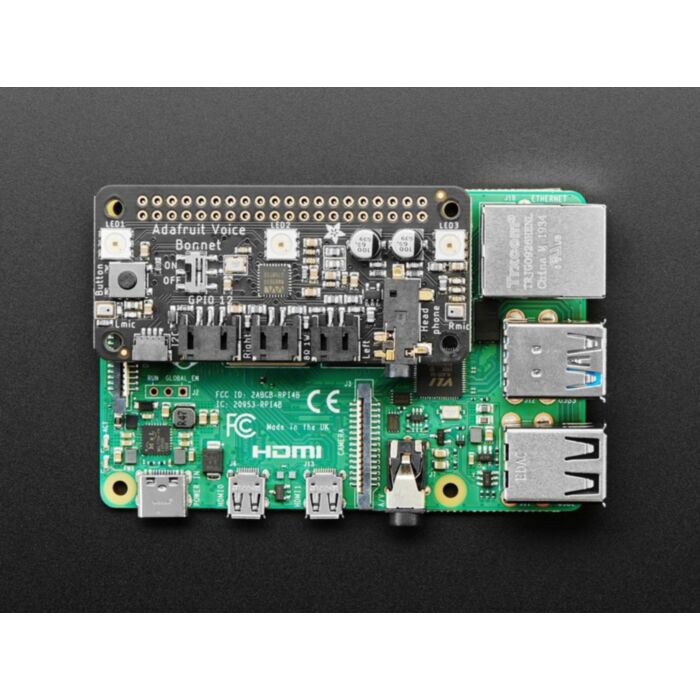

Your Raspberry Pi computer is like an electronic brain - and with the Adafruit Voice Bonnet you can give it a mouth and ears as well! Featuring two microphones and two 1 Watt speaker outputs using a high quality I2S codec, this Pi add-on will work with any Raspberry Pi with a 2x20 connector - from the Pi Zero up to the Pi 4 and beyond (basically all but the very first ones made).

The on-board WM8960 codec uses I2S digital audio for great quality recording and playback - so it sounds a lot better than the headphone jack on the Pi (or the no-headphone jack on a Pi Zero). Adafruit put ferrite beads and filter capacitors on every input and output to get the best possible performance, and all at a great price.

Adafruit specifically designed this bonnet for use with making machine learning projects such as DIY voice assistants - for example see this guide on creating a DIY Google Assistant. But you could do various voice activated or voice recognition projects. With two microphones, basic voice position can be detected as well.

WM8960 codec uses I2S digital audio for both input and output
On/Off privacy switch to deactivate audio so you know it can't be recording.
Two analog microphone inputs (left and right)
Two 1W speaker outputs
3.5mm stereo headphone or line-out audio
Plugs into any Raspberry Pi with 2x20 headers

With the extra space on the PCB They also added some bonus extras!

Push button - Use to change modes, activate the voice assistant, anything you like!
Three DotStar RGB LEDs - add LED feedback or make a rainbow light show
STEMMA QT connector - plug in any of Adafruits I2C sensors, OLEDs, or accessories.
3 Pin JST STEMMA connector - for larger accessories, like NeoPixels, a relay or servo

No assembly required! Simply pop it onto your Pi and install the microphone/speaker card using Adafruits installer script. Your Pi will then have stereo input and output for use in any software - they appear as any other speaker/mic would. Play music or record audio with ease. For audio input, the two microphones are built into the Bonnet. For audio output, you can either use the Line-out/Headphone 3.5mm stereo jack or you can plug in one or two of Adafruits enclosed speakers. For DIY speakers, solder any 1W+ speaker to one of these JST 2-PH cables. If you'd like to stack another HAT or bonnet on top, use a 2x20 stacking header to feed through the 2x20 connector.
