Adafruit STEMMA Speaker - Plug and Play Audio Amplifier

Rating:

100% of 100

SKU: ADA3885 Brand: Adafruit

Hey, have you heard the good news? With Adafruit STEMMA boards you can easily and safely plug sensors and devices together, like this Adafruit STEMMA Speaker - Plug...

$11.95 AUD, inc GST

$10.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $10.54 (exc GST)
25+ $10.32 (exc GST)

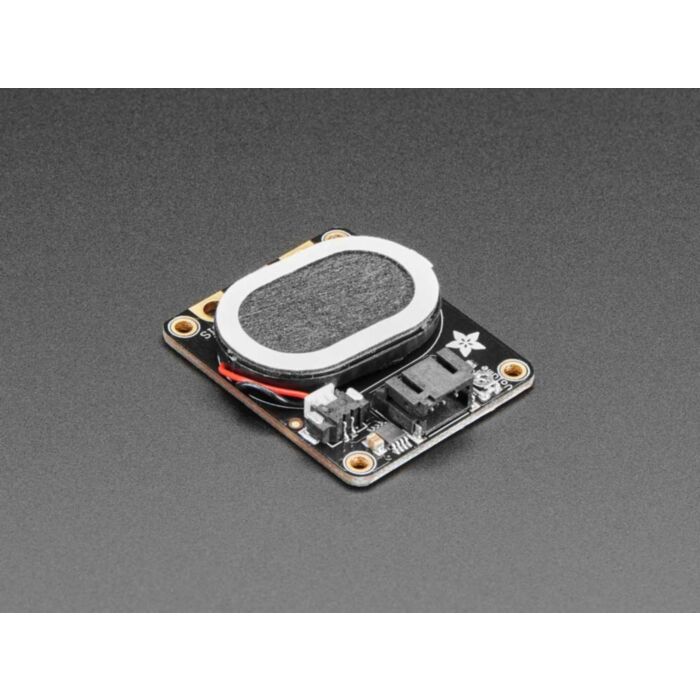

Hey, have you heard the good news? With Adafruit STEMMA boards you can easily and safely plug sensors and devices together, like this Adafruit STEMMA Speaker - Plug and Play Audio Amplifier. Like the name implies, it's got a class D audio amplifier on board, and Adafruit's favorite little 1 Watt 8 ohm speaker.

Connecting it up is easy - you only need ground, 3 to 5V power, and audio signal. The audio signal does not need to be AC coupled, we do that for you, and can range up to the power pin voltage (3 or 5V peak-to-peak). You can use either the 3-pin JST socket or the alligator/sew-pads for this slim and portable package. The sound quality is good enough for music, tones, speech, whatever you like and volume can be adjusted with a small screwdriver.

For use with a CircuitPlayground or micro:bit, this JST to alligator-clip cable works best. Red is power, ground is black and signal is white.

For use with a breadboard, try this JST to male/plug-header. (We also have a socket-header cable if you want)

Technical Details

Assembled dimensions: 37mm x 30.5mm x 7.2mm

Product Weight: 7.5g / 0.3oz
