Mini Sparkle Motion - WLED-friendly ESP32 NeoPixel LED Driver
Available with a lead time
Expect dispatch between Apr 29 and May 05

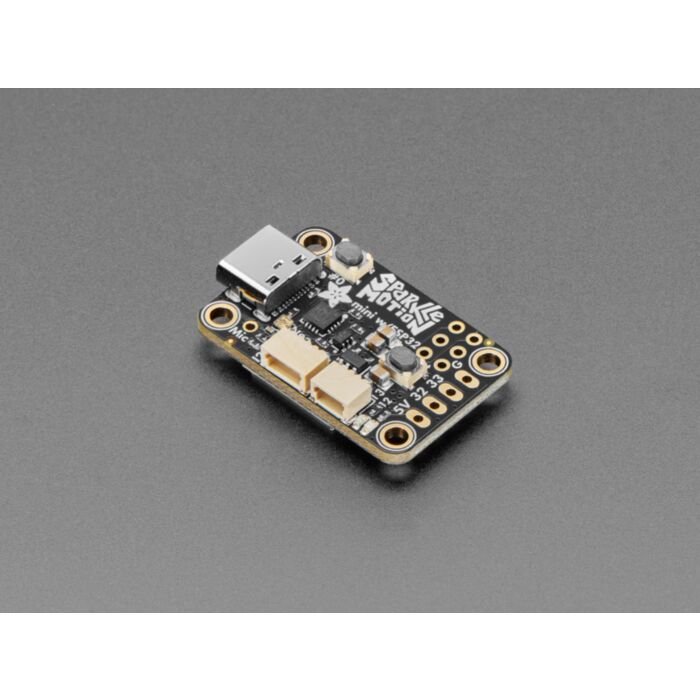

The Adafruit Sparkle Motion Mini is part of our series of "Sparkle Motion" boards, that are Adafruit's attempt to make the best small WLED-friendly smart LED driving board in the whole world. Adafruit's resident mermaid, firepixie makes a lot of projects with WLED and she loves it! So how can Adafruit make something that will be powerful enough to drive advanced LED projects that need a compact design?
The Mini version of the Sparkle Motion is a simpler version of Adafruit's full-featured Sparkle Motion, Adafruit give up the high voltage support and built in IR receiver, in order to make it under 1 square inch in size! By using a 4-layer board and double-sided assembly Adafruit have put together this feature set:
- Power via USB Type C for up to 5V 4A input - you can use off-the-shelf USB battery packs for portable operation.
- 4 Amp resetting fuse to protect from over-current drive
- ESP32 mini module with built in antenna port - the classic ESP32 has the best WLED support even if we'd prefer the 'S2 or 'S3. Comes with 4 MB of flash, dual core 240MHz Tensilica, WiFi, Bluetooth LE and Bluetooth Classic support.
- USB-serial converter with auto-reset
- Two output signals plus 5V power and ground - both signal output are level shifted to 5V. These are on 0.1" spaced breakout pads. To keep the design slim Adafruit don't include terminal blocks pre-soldered, but we do stock the matching blocks if you want them
- Extra 2x3 0.1" breakout pads with 4 more GPIO plus 3V power and ground.
- Built-in I2S microphone
- Stemma QT I2C port to connect external sensors/OLED/etc
- User button on GPIO 0 plus Reset button
- Red built-in LED on pin 12
- Small built-in NeoPixel on pin 18
- Separate analog/digital input JST port for analog input, potentiometer, microphone or external IR receiver on pin 13
- Compact enough you can use it for wearable projects - 1.2"x0.8" / 30mm x 20mm size with mounting holes
While Adafruit recommend it for use with WLED, it will also work just fine as a compact ESP32 board for use with Arduino, ESP-IDF, MicroPython, CircuitPython or any other ESP32 supported codebase.
Note that unlike the classic Sparkle Motion board, we don't include terminal blocks pre-soldered to keep the board very slim. We do stock the matching blocks if you want them, a small amount of soldering is required to attach them. Also, unlike the bigger version, Adafruit dropped the on-board IR receiver - however its easy to add one by plugging in a JST SH 3-pin socket cable and slotting in an IR receiver module.
