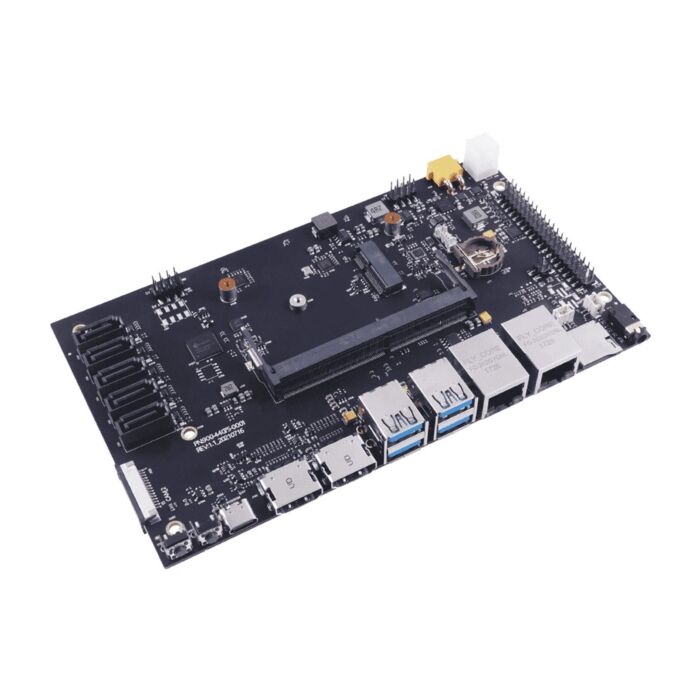

A205 Carrier Board for Jetson Nano/Xavier NX

SKU: SS114110048 Brand: Seeed Studio

A205 is a extended carried board specifically for NVIDIA Jetson Nano / Xavier NX. The rich peripheral interfaces make it suitable for edge areas to meet...

$794.95 AUD, inc GST

$722.68 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 14 and Apr 14

Quantity Discounts:

3+ $701.00 (exc GST)
5+ $686.55 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

Features

Rich peripheral interfaces and complete features
Up to 6 CSI camera connection allowance
5 SATA allows connection to multiple hard drives
Equipped with an anti-fall aviation plug that supports high currents
All-in-one solution with up to 3 fans interfaces for better heat dissipation consideration
Certificate: FCC, CE, RoHS

A205 is a high-performance, interface rich NVIDIA Jetson Nano / Xavier NX/ TX2 NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, USB 2.0 (W / OTG function) M.2 key E Wifi / Bluetooth, SATA, CSI camera, RS232, SD card, CAN, PIO, I2C, I2S fans, and other rich peripheral interfaces, which are suitable to deliver real-time vision computation power for scenarios with strict environmental requirements.

With the NVIDIA Jetson Nano/Xavier NX/TX2 NX module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more. With its multiple camera connectors, it is a better choice for complicated AI graphical applications such as automated optical inspection, robot control, 3D modeling, drone, parallel computing for more Computer vision tasks. Overall, it can be widely deployed in edge areas to meet the demand as video analytics in smart retail, transportation, security, etc.

Application

Industrial Automation
Automated Optical Inspection
Retail Sentimental Analysis
Robot control
3D modeling
Drones

Part List

1 x A205 Carrier Board

1 x Power Adapter 19V/4.74A (90W MAX)

Note

The carrier board is specially designed for working with Jetson Nano/Xavier NX /TX2 NX module. This product does not come with these modules.
When using Jetson Nano, the M.2 Key E cannot work.
The 3V RTC battery is not included
We will not include a power cord, please choose a suitable form according to your country.

Documentations

A205 Carrier Board Specification

A205 Pin Description.pdf
