Arducam Complete High Quality Camera Bundle for Jetson Nano/Xavier NX

SKU: AC-B0250 Brand: Arducam

This complete High-Quality camera bundle for Jetson Nano/Xavier NX is perfect for machine learning projects.

$159.95 AUD, inc GST

$145.41 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 14th of May

Quantity Discounts:

5-10 $139.59 (exc GST)
10+ $135.23 (exc GST)

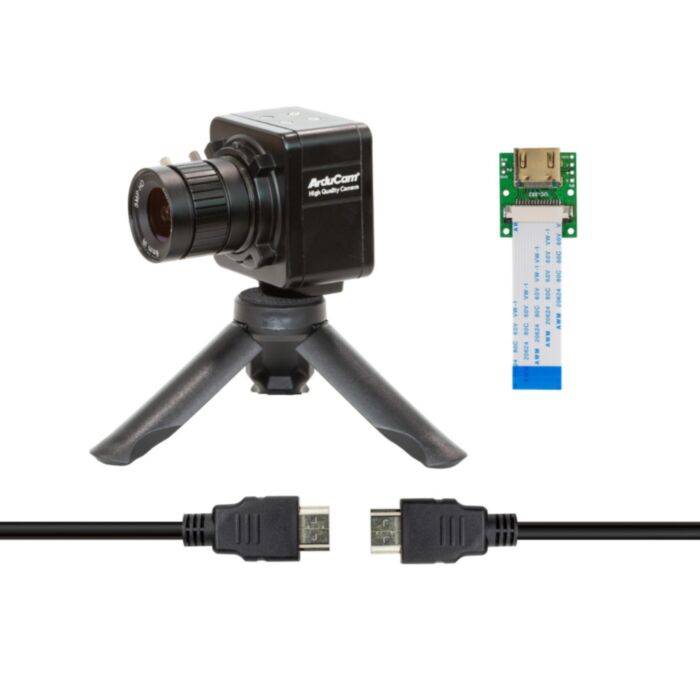

Arducam just released this complete High Quality camera bundle for Jetson Nano/Xavier NX, an IMX477 camera board with a 6mm CS lens, a customized metal enclosure, a tripod stand, and a set extension adapter. The customers can use this camera module on Jetson Nano/Xavier NX natively with hardware ISP features.

Currently, NVIDIA official has released the NVIDIA Jetson Orin series developer board. Based on it, we have also adapted the camera into NVIDIA Jetson Orin kernel.

This camera relies on kernel drivers to work – one kernel version, one camera driver.

Versions earlier than JetPack 4.3 (L4T 32.3.1) are not supported.
Up or downgrading your OS leads to a kernel bump, and you’ll need to re-install a matching driver.
Future JetPack/kernel updates require future drivers. When that happens, please allow us some time to process. And if you don’t see it released in time, kindly remind us.

Our IMX477 camera module support 4-lane in hardware, but the 4-lane camera driver requires extra customization. Here is why:

Standard Raspberry Pi and Jetson Nano/Xavier NX can’t physically support a 4-lane connection (both of them only have 2-lane CSI connectors). Only the Raspberry Pi Compute Module and some 3rd party Jetson Carrier Boards come with 4-lane hardware support. Therefore, it’s not a general need.
Extra works, specifically camera drivers, are required for a 4-lane connection other than the 4-lane physical connector. And the drivers are limited by the performances of the platform itself. For example, 4-lane can’t unlock 4k video on Raspberry Pi because the VideoCore does not currently support it. Jetson Nano is also to some extent limited because of the encoding capabilities. You need to make sure you really need it.

This camera is released for official Jetson Nano/Xavier NX boards by default, and it does not support other third-party boards.

Specs

Camera

Sensor: IMX477
Optical Format: 1/2.3" (diagonal 7.857mm)
Resolution: 4056(H) x 3040(V) 12.3MP
Pixel Size: 1.55um x 1.55um
IR Sensitivity: Visible light
Interface: 4-lane MIPI CSI-2
Default Lens Mount: CS-Mount
Frame Rate: 4032×3040@30fps, 3840×2160@30fps, 1920×1080@60fps; Due to Jetson Xavier NX/Nano hardware only supports 4K@30fps h.264/h.265 encoding, you cannot use it for 4K@60fps.
Frame Rate (NVIDIA Orin NX/AGX NX): 4032×3040@60fps, 1920×1080@60fps

Lens

Format: 1/2.3 inch
Focal Length: 6mm
Aperture (F): Max. F1.2
Field of View (FOV): 65° (H)
Mount: CS-Mount
Back Focal Length: 7.53mm
MOD: 0.2m
Dimension: F30×31mm
Weight: 53g

Lens Options

CS-Mount Lens

SKU	LN051	LN050	LN038	LN039	LN040	LN041	LN029
Part No	CS17320M12	CS2316ZM02	CS2308ZM05	CS2008ZM05A	CS1812ZM03	CS2325ZM01	CS1806ZM06
Optical Format	1/1.7"	1/2.3'	1/2.3''	1/2.3''	1/2.3''	1/2.3''	1/2.3''
EFL(mm)	3.2	16.00	8.00	8.00	12.00	25.00	6.00
BFL(mm)	5.94	7.53	6.50	7.53	7.53	8.03	8.03
F/NO	2.0	1.2	1.4	1.2	1.6	1.2	1.4
HFOV on 1/2.3‘’ Cam	120°	24°	50°	50°	30°	14°	65°
MOD	0.30m	0.20m	0.30m	0.20m	0.20m	0.20m	0.30m
Size(mm)	28×30	30×29	28×23	30×29.5	30×29	28×29	28×28.5

NOTE 1: The CS-Mount Lens kit for the HQ Camera module, please check LK004, 5 lenses are included.

Camera board

Board Size: 38mm×38mm
Hole Pitch: Compatible with 29mm, 30mm, 34mm

Package Contents

1 pcs 12.3MP IMX477 color camera module
1 pcs 6mm focal length CS-mount camera lens
1 pcs HDMI-CSI camera adapter board with 60mm/2.36inch 15 pin camera cable
1 pcs 1m high-speed HDMI cable
1 pcs metal enclosure for camera module
1 pcs mini tripod stand

Documentation

How to use the camera on NVIDIA Jetson Orin NX/AGX Orin
