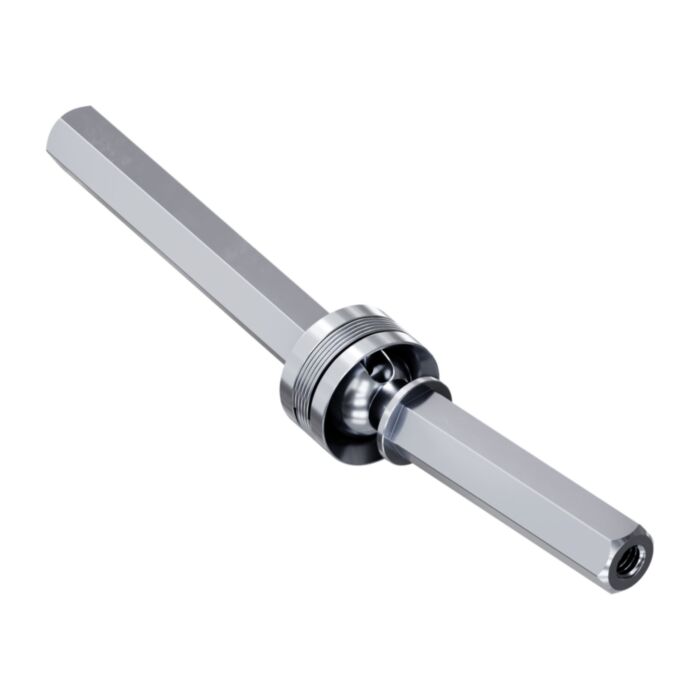

8mm REX™ CV Joint (Male to Male)

SKU: GB-2108-4008-0001 Brand: goBilda

This Male-to-Male 8mm REX™ CV Joint offers positive drive at variable angles. A constant-velocity (CV) joint allows you to create a drive.....

$28.80 AUD, inc GST

$26.18 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 20 and Nov 25

Quantity Discounts:

10-25 $24.87 (exc GST)
25+ $23.56 (exc GST)

This Male-to-Male 8mm REX™ CV Joint offers positive drive at variable angles. A constant-velocity (CV) joint allows you to create a drive that is angular to the input or output. This kind of drive is critical in applications that require power transfer to occur through a moving section, such as in suspensions and arms.

This male-to-male joint provides two stainless steel 8mm REX® shaft lengths. The two shafts are connected at a junction specially designed to transfer shaft rotation along a nonlinear path.

The 8mm REX™ profile (a combination of Round and hEX) facilitates fierce positive drive and has extensive compatibility with 8mm REX™ bore components throughout the goBILDA® system. It also means that this joint is able to rotate smoothly in 8mm round bore bearings! Both of this joint’s shafts have an M4 hole that provides for additional attachment options.

Downloads

Specs

Weight	37g
Material	Steel
Finish	Zinc-Plated

This product is listed in:

goBILDA>MOTION>CV & Universal Joints
