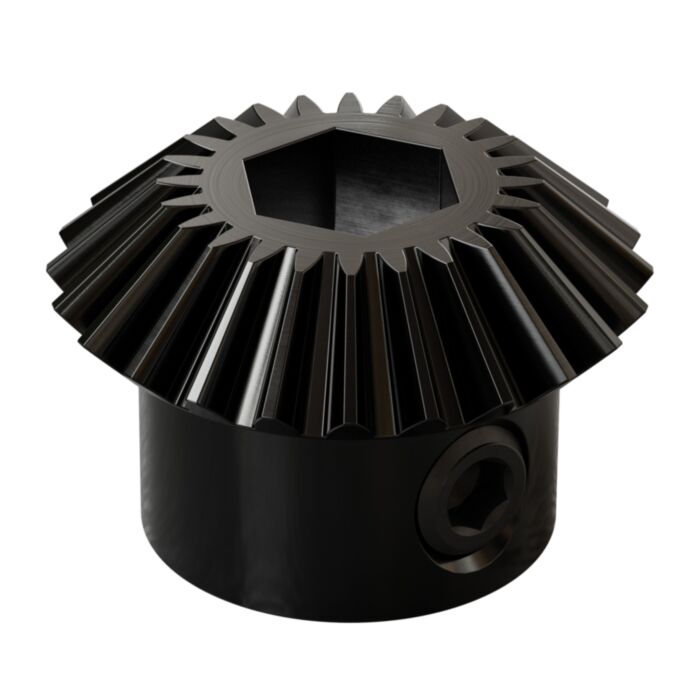

2317 Series Steel, MOD 0.8 Miter Gear (8mm REX Bore, 24 Tooth)

SKU: GB-2317-4008-0024 Brand: goBilda

Miter gears are a specific type of a bevel gear that create a 1:1 ratio at 90° due to their 45° pitch cone angle. Though we also offer the.....

$16.40 AUD, inc GST

$14.91 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 29 and Dec 02

Quantity Discounts:

10-25 $14.16 (exc GST)
25+ $13.42 (exc GST)

Miter gears are a specific type of a bevel gear that create a 1:1 ratio at 90° due to their 45° pitch cone angle. Though we also offer the larger 2315 Series Miter Gears, 2317 Series Miter Gears are sized for more intricate applications that benefit from compactness and lesser rotating mass!

This 8mm REX™ Bore Miter Gear is able to mesh with any other 2317 Series Miter Gear, regardless of bore size. Simply space the back of each miter gear 20mm from the center of the shaft driving the other miter gear, and make sure their shafts are at 90° to each other.

This miter gear’s 8mm REX bore (as seen in our 5203 Series Yellow Jacket Planetary Gear Motors) is the go-to for beefy, positive drive. Meanwhile, its two M5 set-screws—located on flats 120° apart—ensure that the gear will not move axially along a shaft, even in the most strenuous applications.

Downloads

Specs

Weight	16g
Material	Steel
Finish	Black Zinc-Plated
Pressure Angle	20°

This product is listed in:

goBILDA>MOTION>Gears>Bevel Gears>MOD 0.8 Miter Gears 1:1 Ratio, Set-Screw
