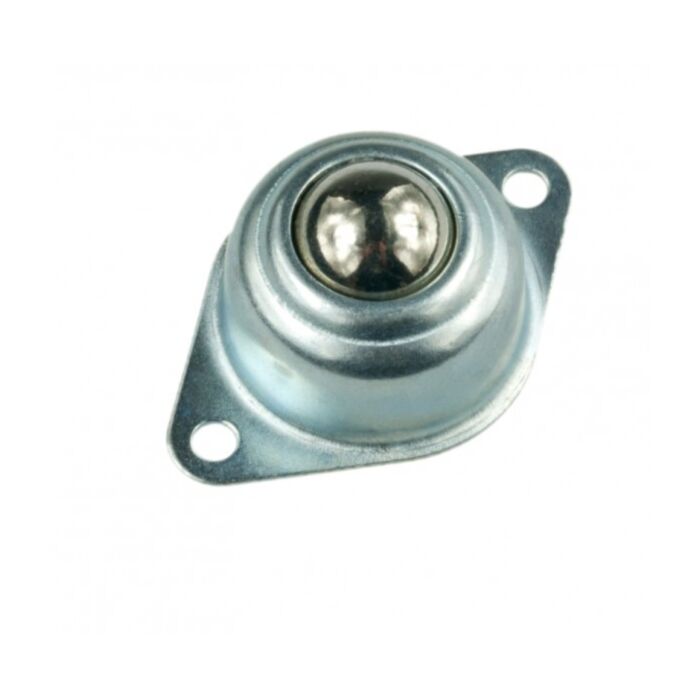

Metal ball casters

Rating:

80% of 100

4 Reviews

SKU: FIT0007 Brand: DFRobot

Metal ball caster, 1mm thick steel plate from the machine stamping, it has the capbility to support 15KG payload.

$4.35 AUD, inc GST

$3.95 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 03 and Feb 06

Quantity Discounts:

10-25 $3.84 (exc GST)
25+ $3.72 (exc GST)

Introduction

Metal ball caster, 1mm thick steel plate from the machine stamping, it has the capbility to support 15KG payload. The Caster is strong and lightweight. It has 20mm high round body, with a total weight of only 37g; and large steel ball around a small ball around as much as 40 to rotate the main scroll ball much more smoothly, which make the robot walk or move at a more flexible and comfortable way. Our popular 2WD Arduino Platform adapts this caster.

Specifications

Fixed hole: 4mm
Center Distance to Fixed holes: 40mm
Ball body height: 20mm
Ball protruding height: 4mm
Bearing ball number: 40
Maximum load: 15KG
Ball diameter: 15mm
Weight: 37g

This product is listed in:

Hardware>Wheels
Hardware>Wheels>Casters
