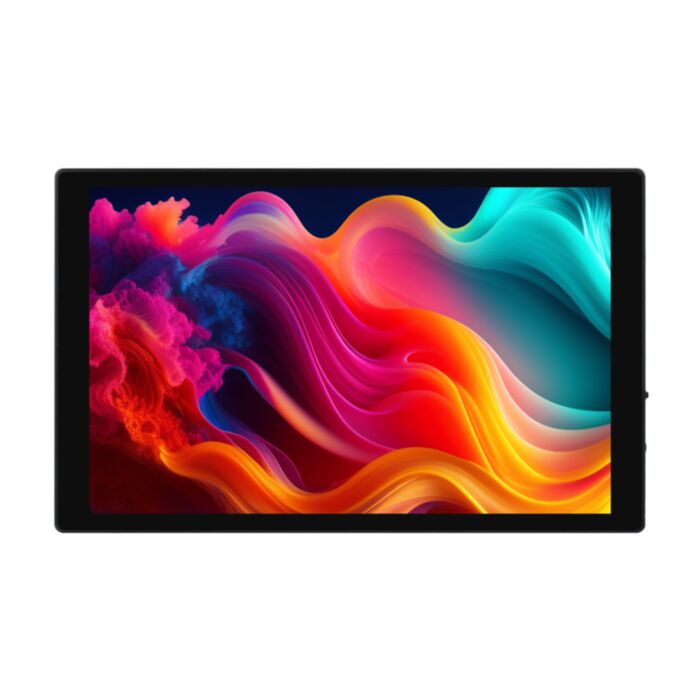

8inch Capacitive Touch Display, Wide Color Gamut, 1280×800, Optical Bonding Toughened Glass Panel, HDMI/Type-C Display Interface

SKU: WS-24483 Brand: Waveshare
8inch Capacitive Touch Display, Wide Color Gamut, 1280×800, Optical Bonding Toughened Glass Panel, HDMI/Type-C Display Interface, 10-Point Touch, Aluminum...
$174.95 AUD, inc GST
$159.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

  • 5-10 $154.27 (exc GST)
  • 10+ $151.09 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details

8inch Capacitive Touch Display, Wide Color Gamut, 1280×800, Optical Bonding Toughened Glass Panel, HDMI/Type-C Display Interface, 10-Point Touch, Aluminum Alloy Case
8" Wide Color Gamut Touch Display

High Resolution | Multi-Point Touch | Full Color



  • Size8"
  • Resolution1280×800
  • Display InterfaceHDMI/Type-C
  • Display PanelIPS
  • Viewing Angle178°
  • Touch TypeCapacitive
  • Touch Points10-Point
  • Touch PortUSB Type-C
  • Touch PanelToughened Glass
  • Touch Panel TechOptical Bonding
  • OSD MenuBrightness/Contrast
  • BrightnessSupports DDC/CI control
    control
  • Audio Output3.5mm Jack
  • SoundHi-Fi Speaker
  • EnclosureAluminum Alloy
  • SmartphoneHuawei/Samsung/OPPO...
  • VESA Wall Mount50 × 50mm

Device & System Support

Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali/ WIN10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Nano
Supports Ubuntu, single point touch, driver free
VisionFive2
Supports Debian, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Smartphone
Huawei, Samsung, OPPO, LG...(wired projection)
Connection Examples

Working with Raspberry Pi 4B


Working with Raspberry Pi 3B+


Working with Raspberry Pi Zero 2 W

You need to prepare additional mini HDMI adapter and USB cable


Working with Jetson Nano


Working with PC *


Working with Smartphone *


  • Please make sure that the smartphone or PC itself features full-featured Type-C interface
  • For reference only, the above controller boards or hosts are NOT included

IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle


Wide Color Gamut LED technology

Wider Color Gamut, More Pure Chroma

Color Gamut Of This Display Is Up To NTSC 82%, Chroma Increases 58.3%, Makes The Color More Pure, More Vivid


Capacitive 10-Point Touch
  1. up to 10-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel
  3. Optical Bonding, display well and dustproof

Supports DDC/CI brightness adjustment

Full-featured Type-C interface

Audio And Video Transmission In One Connection, plug and play,
instantly zoom in the smartphone screen
(For supported mobile phone models, please contact customer service)

Computer Dual Screen For Collaborative Processing

One screen for work, one screen for entertainment, without interfering with each other

Dual-Track Speaker

Ferrite Hi-Fi Speaker, Larger Volume, Wider Sound Range, Better Sound Quality

Comes with Triangular stand
VESA Mounting Support
Interface Introduction


Product Show


Dimensions


Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Resources & Services
Product Certification

HDMI Certified

Selection Guide

PartNumber Display Touch Audio Device Support
Resolu-tion Display Port Display Panel View Angle Touch Type Touch Port Toughened Glass Panel Optical Bonding Spe-
aker		 Signal Output Pi JETSON NANO PC
SPI DISPLAYS
PROS: low price.
CONS: low refresh rate & resolution, supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO (the SPI bus), poor compatibility with Raspberry Pi system.
2.8inch RPi LCD (A) 320×240 SPI TFT – Resistive SPI × × × × v × ×
3.2inch RPi LCD (B) 320×240 SPI TFT – Resistive SPI × × × × v × ×
3.5inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × v × ×
3.5inch RPi LCD (B) 480×320 SPI IPS 160° Resistive SPI × × × × v × ×
3.5inch RPi LCD (C) 480×320 High-Speed SPI TFT – Resistive SPI × × × × v × ×
4inch RPi LCD (A) 480×320 SPI TFT – Resistive SPI × × × × v × ×
DPI DISPLAYS
PROS: low price, high refresh rate, multiple resolution support, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only, requires Raspberry Pi 40PIN GPIO.
2.8inch DPI LCD 480×640 DPI IPS 160° Capacitive I2C v v × × v × ×
3.5inch DPI LCD 640×480 DPI IPS 170° Capacitive I2C v × × × v × ×
4inch DPI LCD (C) 720×720 DPI IPS 170° Capacitive I2C v v × × v × ×
5inch DPI LCD 800×480 DPI IPS 160° – – × × × × v × ×
7inch DPI LCD 1024×600 DPI IPS 170° – – × × × × v × ×
DSI DISPLAYS
PROS: moderate price, high refresh rate, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: supports Raspberry Pi only.
2.8inch DSI LCD 480×640 DSI IPS 160° Capacitive I2C v v × × v × ×
3.4inch DSI LCD (C) 800×800 DSI IPS 170° Capacitive I2C v v × × v × ×
4inch DSI LCD 480×800 DSI IPS 170° Capacitive I2C v v × × v × ×
4inch DSI LCD (C) 720×720 DSI IPS 170° Capacitive I2C v v × × v × ×
4.3inch DSI LCD 800×480 DSI IPS 160° Capacitive I2C v × × × v × ×
4.3inch DSI LCD (with case) 800×480 DSI IPS 160° Capacitive I2C v × × × v × ×
4.3inch DSI QLED 800×480 DSI IPS(QLED) 160° Capacitive I2C v × × × v × ×
5inch DSI LCD 800×480 DSI TFT – Capacitive I2C v × × × v × ×
5inch DSI LCD (B) 800×480 DSI IPS 160° Capacitive I2C v × × × v × ×
5inch DSI LCD (C) 1024×600 DSI IPS 178° Capacitive I2C v × × × v × ×
7inch DSI LCD 800×480 DSI TFT – Capacitive I2C v × × × v × ×
7inch DSI LCD (with case A) 800×480 DSI TFT – Capacitive I2C v × × × v × ×
7inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C v × × × v × ×
7inch DSI LCD (with cam and case) 800×480 DSI TFT – Capacitive I2C v × × × v × ×
7inch DSI LCD (B) 800×480 DSI IPS 170° Capacitive I2C v × × × v × ×
7inch DSI LCD (B) (with case A) 800×480 DSI IPS 170° Capacitive I2C v × × × v × ×
7inch DSI LCD (C) 1024×600 DSI IPS 170° Capacitive I2C v × × × v × ×
7inch DSI LCD (C) (with case A) 1024×600 DSI IPS 170° Capacitive I2C v × × × v × ×
7.9inch DSI LCD 400×1280 DSI IPS 170° Capacitive I2C v × × × v × ×
8inch DSI LCD 800×480 DSI TFT – Capacitive I2C v × × × v × ×
8inch DSI LCD (with cam) 800×480 DSI TFT – Capacitive I2C v × × × v × ×
8inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C v v × × v × ×
10.1inch DSI LCD (C) 1280×800 DSI IPS 178° Capacitive I2C v v × × v × ×
11.9inch DSI LCD 320×1480 DSI IPS 170° Capacitive I2C v × × × v × ×
HDMI / TYPE-C DISPLAYS
PROS: high refresh rate, multiple resolution support, multiple devices support, leaves the Raspberry Pi 40PIN GPIO free, better compatibility with Raspberry Pi system.
CONS: somewhat costly.
2.8inch HDMI LCD (H) 480×640 HDMI IPS 160° Capacitive USB-C / I2C v v × × v v v
3.2inch HDMI LCD (H) 480×800 HDMI IPS 160° × × × × × × v v Display ONLY
3.4inch 800x800 LCD 800x800 HDMI IPS 170° Capacitive Type-C v v × v v v v
3.5inch HDMI LCD 480×320 HDMI IPS 160° Resistive SPI × × × v v × Display ONLY
3.5inch 480x800 LCD 480×800 HDMI IPS 170° Capacitive USB-C × × × × v v v
4inch 720x720 LCD 720x720 HDMI IPS 170° Capacitive Type-C v v × v v v v
4inch HDMI LCD 480×800 HDMI IPS 170° Resistive SPI × × × × v × Display ONLY
4inch HDMI LCD (C) 720×720 HDMI IPS 170° Capacitive USB-C / I2C v v × v v v v
4inch HDMI LCD (H) 480×800 HDMI IPS 170° Resistive SPI × × × v v × Display ONLY
4.3inch HDMI LCD (B) 800×480 HDMI IPS 160° Capacitive USB × × × v v v v
5DP-CAPLCD-H 1024×600 HDMI IPS 178° Capacitive Type-C v × × v v v v
5DP-CAPLCD-B 1024×600 HDMI IPS 178° Capacitive Type-C v v × v v v v
5DP-CAPLCD-G 1024×600 HDMI IPS 178° Resistive Type-C v × × v v v v
5inch HDMI LCD 800×480 HDMI TFT – Resistive SPI × × × × v × ×
5inch HDMI LCD (with bicolor case) 800×480 HDMI TFT – Resistive SPI × × × × v × ×
5inch HDMI LCD (B) 800×480 HDMI TFT – Resistive USB × × × × v × v
5inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Resistive USB × × × × v × v
5inch HDMI LCD (G) 800×480 HDMI/VGA TFT – Resistive USB × × × v v × v
5inch HDMI LCD (H) 800×480 HDMI/VGA TFT – Capacitive USB v × × v v v v
5inch HDMI LCD (H) V4 800×480 HDMI TFT – Capacitive USB v × × × v × v
5inch HDMI AMOLED 960×544 HDMI AMOLED 170° Capacitive USB v v × v v v v
5inch 1080x1080 LCD 1080×1080 HDMI IPS 160° Capacitive Type-C v v v v v v v
5.5inch HDMI AMOLED 1080×1920 HDMI AMOLED 170° Capacitive USB v v × v v v v
5.5inch HDMI AMOLED (with case A) 1080×1920 HDMI AMOLED 170° Capacitive USB v v × v v × ×
5.5inch 1440x2560 LCD 1440×2560 HDMI IPS 170° Capacitive USB v v × v v × v
5.5inch 1440x2560 LCD (with case A) 1440×2560 HDMI IPS 170° Capacitive USB v v × v v × ×
6.25inch 720x1560 LCD 720×1560 HDMI IPS 178° Capacitive Type-C v v v × v v v
7EP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB v v v v v v v
7inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × v × Display ONLY
7inch HDMI LCD (B) 800×480 HDMI TFT – Capacitive USB × × × × v × v
7inch HDMI LCD (B) (with bicolor case) 800×480 HDMI TFT – Capacitive USB × × × × v × v
7inch HDMI LCD (C) 1024×600 HDMI IPS 170° Capacitive USB × × × × v × v
7inch HDMI LCD (C) (with bicolor case) 1024×600 HDMI IPS 170° Capacitive USB × × × × v × v
7inch HDMI LCD (H) 1024×600 HDMI/VGA IPS 170° Capacitive USB × × × v v v v
7inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB v × × v v v v
7HP-CAPQLED 1024×600 HDMI IPS (QLED) 170° Capacitive USB v × × v v v v
7.9inch HDMI LCD 400×1280 HDMI IPS 170° Capacitive USB v × × v v v v
7.9inch Side Monitor 400×1280 HDMI IPS 170° × × v × v × v v v
7.9inch Touch Monitor 400×1280 HDMI IPS 170° Capacitive USB v × v × v v v
8DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB v v × v v v v
8HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB v v v v v v v
8inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C v × v v v v v
8inch 1536x2048 LCD 1536×2048 HDMI IPS 178° Capacitive Type-C v v v v v v v
8.8inch Side Monitor 480×1920 HDMI IPS 170° × × × × v × v v Display ONLY
9HP-CAPQLED-B 1280×720 HDMI IPS (QLED) 178° Capacitive USB v × × v v v v
9.3inch 1600x600 LCD 1600×600 HDMI IPS 178° Capacitive Type-C v v v v v v v
9.7inch 768x1024 LCD 768×1024 HDMI IPS 178° Capacitive Type-C v × v v v v v
10.1inch HDMI LCD 1024×600 HDMI IPS 170° Resistive SPI × × × × v × Display ONLY
10.1inch HDMI LCD (B) (with case) 1280×800 HDMI IPS 170° Capacitive USB v × × × v × v
10.1inch HDMI LCD (E) 1024×600 HDMI IPS 170° Capacitive USB v v × v v v v
10.1inch HDMI LCD (G) (with case) 1920×1200 HDMI IPS 160° Capacitive USB v v v v v v v
10.1inch HDMI LCD (H) (with case) 1024×600 HDMI/VGA TFT – Capacitive USB × × × × v v v
10.1inch HDMI LCD (F) (with case) 1024×600 HDMI/VGA IPS 170° Capacitive USB v × v × v v v
10.1DP-CAPLCD 1280×800 HDMI IPS 178° Capacitive USB v v × v v v v
10.1HP-CAPQLED 1280×720 HDMI IPS (QLED) 170° Capacitive USB v × × v v v v
10.1HP-CAPLCD Monitor 1280×800 HDMI/Type-C IPS 178° Capacitive USB v v v v v v v
10.4HP-CAPQLED 1600×720 HDMI IPS(QLED) 178° Capacitive Type-C v v v v v v v
10.5inch HDMI AMOLED 2560×1600 HDMI AMOLED 160° Capacitive USB v v v v v v v
11.6inch 1768x828 LCD 1768×828 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × v v v v
11.6inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB v v × v v v v
11.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB v v v v v v v
11.9inch HDMI LCD 320×1480 HDMI IPS 170° Capacitive USB v × × v v v v
11.9inch Side Monitor 320×1480 HDMI IPS 170° × × v × v × v v v
11.9inch Touch Monitor 320×1480 HDMI IPS 170° Capacitive USB v × v × v v v
12.3inch 1920x720 LCD 1920×720 HDMI/Type-C IPS 178° Capacitive Type-C In-Cell × × v v v v
12.3inch HDMI LCD 1920×720 HDMI IPS 178° Capacitive USB v v v v v v v
13.3inch HDMI LCD (H) 1920×1080 HDMI IPS 178° Capacitive USB v × × v v v v
13.3inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB v × v v v v v
13.3inch HDMI LCD (H) (with case) V2 1920×1080 HDMI/VGA IPS 178° Capacitive USB v × v v v v v
13.3inch QHD AMOLED 2560×1440 HDMI/Type-C AMOLED 178° Capacitive Type-C v v v v v v v
14inch 2160x1440 LCD 2160×1440 HDMI/Type-C/DP IPS 178° Capacitive Type-C v v × v v v v
15.6inch Dual Monitor 1920×1080 HDMI/Type-C IPS 178° × × × × v v v v v
15.6inch HDMI LCD 1920×1080 HDMI IPS 178° Capacitive USB v × × v v v v
15.6inch HDMI LCD (H) (with case) 1920×1080 HDMI/VGA IPS 178° Capacitive USB v × v v v v v
15.6inch FHD Monitor 1920×1080 HDMI/Type-C IPS 178° Capacitive Type-C / USB v × v v v v v
15.6HP-CAPQLED 1920×1080 HDMI IPS(QLED) 178° Capacitive USB v v × v v v v
15.6inch QLED Monitor 1920×1080 HDMI IPS(QLED) 178° Capacitive Type-C v v v v v v v
18.5inch FHD LCD 1080×1920 HDMI/Type-C IPS 178° Capacitive Type-C v v × v v v v
21.5inch FHD LCD 1080×1920 HDMI IPS 170° Capacitive Type-C v v × v v v v
21.5inch FHD Monitor 1080×1920 HDMI IPS 170° Capacitive Type-C v v v × v v v

Have a look :
RPi LCD Comparing

Weight: 0.623 kg

Quick Overview

  1. 8HP-CAPLCD Monitor ×1
  2. HDMI flat cable ~1m ×1
  3. HDMI to Micro HDMI Adapter ~1m ×1
  4. USB-A to USB-C cable ~1m ×1
  5. USB-C to USB-C cable ×1
  6. Triangular stand ×1

This product is listed in:

Displays & Screens>HDMI, DSI & Composite

Product Comments

Exact shipping can be calculated on the view cart page (no login required).

Products that weigh more than 0.5 KG may cost more than what's shown (for example, test equipment, machines, >500mL liquids, etc).

We deliver Australia-wide with these options (depends on the final destination - you can get a quote on the view cart page):

  • $3+ for Stamped Mail (typically 10+ business days, not tracked, only available on selected small items)
  • $7+ for Standard Post (typically 6+ business days, tracked)
  • $11+ for Express Post (typically 2+ business days, tracked)
  • Pickup - Free! Only available to customers who live in the Newcastle region (must order online and only pickup after we email to notify you the order is ready). Orders placed after 2PM may not be ready until the following business day.

Non-metro addresses in WA, NT, SA & TAS can take 2+ days in addition to the above information.

Some batteries (such as LiPo) can't be shipped by Air. During checkout, Express Post and International Methods will not be an option if you have that type of battery in your shopping cart.

International Orders - the following rates are for New Zealand and will vary for other countries:

  • $12+ for Pack and Track (3+ days, tracked)
  • $16+ for Express International (2-5 days, tracked)

If you order lots of gear, the postage amount will increase based on the weight of your order.

Our physical address (here's a PDF which includes other key business details):

Unit 18, 132 Garden Grove Parade
Adamstown
NSW, 2289
Australia

Take a look at our customer service page if you have other questions such as "do we do purchase orders" (yes!) or "are prices GST inclusive" (yes they are!). We're here to help - get in touch with us to talk shop.

Have a product question? We're here to help!

Write Your Own Review

Videos

View All
DFRobot 8.9 Inch 1920x1200 IPS Touch Display For Raspberry P ...
Tiny Screens for Raspberry Pi - Waveshare 3.5 Inch LCD
How to Rotate Raspberry Pi Video Display / Screen

Guides

DFRobot 8.9 Inch 1920x1200 IPS Touch Display For Raspberry Pi - Set Up Guide

DFRobot 8.9 Inch 1920x1200 IPS Touch Display For Raspberry Pi - Set Up Guide

By Tim
Date 20 February 2023
It is time for a high-quality, complete package, 1920x1200 (HD) display set up with a Raspberry Pi ...
#raspberry pi #pi #screen #touchscreen #touch #8.9
It is time for a high-quality, complete package, 1920x1200 (HD) display set up with a Raspberry Pi ...
#raspberry pi #pi #screen #touchscreen #touch #8.9
Tiny Screens for Raspberry Pi - Waveshare 3.5 Inch LCD

Tiny Screens for Raspberry Pi - Waveshare 3.5 Inch LCD

By Tim
Date 16 February 2023
There is a whole range of Sub-4 Inch Displays that attach directly to the GPIO pins of Raspberry Pi ...
#gpio #screen #tiny #touch
There is a whole range of Sub-4 Inch Displays that attach directly to the GPIO pins of Raspberry Pi ...
#gpio #screen #tiny #touch
How to Rotate Raspberry Pi Video Display / Screen

How to Rotate Raspberry Pi Video Display / Screen

By Sam
Date 13 January 2018
Like many things in the Raspberry Pi ecosystem, functions such as rotating the display output can be...
#pi #raspberry #display #border #flip #rotate #touchscreen #video
Like many things in the Raspberry Pi ecosystem, functions such as rotating the display output can be...
#pi #raspberry #display #border #flip #rotate #touchscreen #video
The Maker Revolution

The Maker Revolution

By Michael
Date 13 April 2022
The Maker Revolution celebrates the creation of new devices and the modification of existing ones - ...
#poster #infographic #maker #movement #revolution
The Maker Revolution celebrates the creation of new devices and the modification of existing ones - ...
#poster #infographic #maker #movement #revolution

Projects

Raspberry Pi Game Show

Raspberry Pi Game Show

Date 15 September 2022
IntroductionI made this project because I had been given a Raspberry Pi 4 for Christmas and was hop...
#raspberry pi #crafts #game #diy #button
IntroductionI made this project because I had been given a Raspberry Pi 4 for Christmas and was hop...
#raspberry pi #crafts #game #diy #button
Simple e-ink dashboard

Simple e-ink dashboard

By Steven
Date 31 January 2022
The aim of my project was to make a small display to show information such as the clock, weather, ca...
#raspberry pi #e-ink
The aim of my project was to make a small display to show information such as the clock, weather, ca...
#raspberry pi #e-ink
Raspberry Pi Desk Clock with Data Display

Raspberry Pi Desk Clock with Data Display

By twr140
Date 31 March 2022
This project uses a Raspberry Pi and TFT display panel to provide a desk clock that also monitors ou...
#raspberry pi #solar #tft #real-time #tracking
This project uses a Raspberry Pi and TFT display panel to provide a desk clock that also monitors ou...
#raspberry pi #solar #tft #real-time #tracking
Feedback

Please continue if you would like to leave feedback for any of these topics:

  • Website features/issues
  • Content errors/improvements
  • Missing products/categories
  • Product assignments to categories
  • Search results relevance

For all other inquiries (orders status, stock levels, etc), please contact our support team for quick assistance.

Note: click continue and a draft email will be opened to edit. If you don't have an email client on your device, then send a message via the chat icon on the bottom left of our website.

Follow us on instagram

@coreelectronics

About Us

Core Electronics is a maker education and retail company based in Newcastle Australia. We specialise in DIY electronics, desktop manufacturing and educational technology.

sign up for maker mail!
Payment

Have a product question? We're here to help!

Makers love reviews as much as you do, please follow this link to review the products you have purchased.

Copyright © Core Electronics. All rights reserved.
