16mm Illuminated Pushbutton - Red Latching On/Off Switch

SKU: ADA1442

$2.95 AUD, inc GST
$2.68 AUD, exc GST

More Views

16mm Illuminated Pushbutton - Red Latching On/Off Switch
2.95 AUD

SKU: ADA1442

$2.95 AUD, inc GST
$2.68 AUD, exc GST
1 reviews 0 5 5
In stock, with a short lead time. 118 units dispatch in 4 to 7 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Wed, 4th of Oct with Express Post within Australia.
Shipping Offer

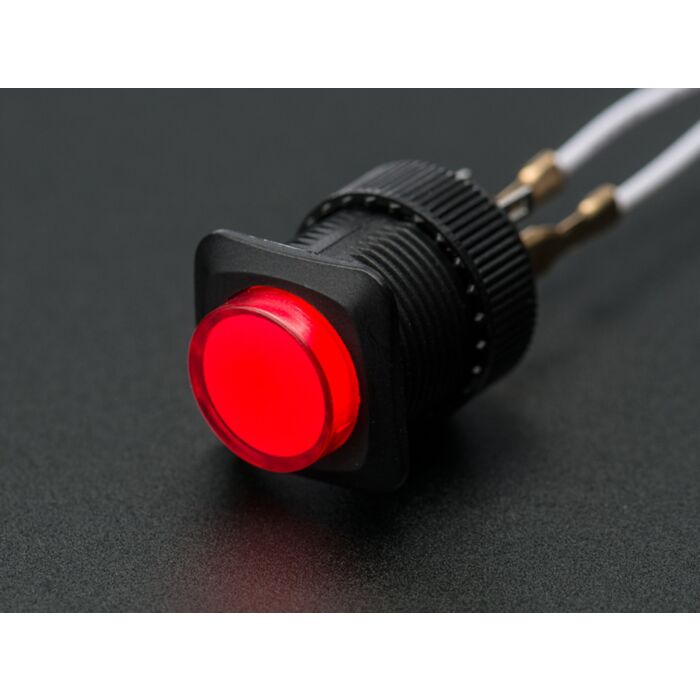

A switch is a switch, and an LED is an LED, but this LED illuminated button is a lovely combination of both! It's a medium sized button, large enough to press easily but not too big that it gets in the way of your project panel. It has a built in LED that can be controlled separately from the switch action - either to indicate or just to look good.

The body is a black plastic with the LED built inside. There are two contacts for the button and two contacts for the LED, one marked + and one -. The forward voltage of the LED is about 2.2V so connect a 220 to 1000 ohm resistor in series just as you would with any other LED to your 3V or higher power supply.

This particular button has a red body and LED and is latching on/off. The two switch contacts are either connected or disconnected. When you push the button they will switch from one to the other, like an on-off switch. The LED is separated from the button, so you can make it light up when on, light up when off, always lit, etc.

16mm Illuminated Pushbuttons (7:54)

Technical Details

  • Max Dimensions: 18.06mm / 0.7" x 18mm / 0.7" x 29.4mm / 1.15"
  • Shaft Dimensions: 14.89mm / 0.58" x 15.56mm / 0.6" x 18.7mm / 0.73"
  • Button Height: 5mm / 0.2"
  • Button Height Depressed: 3.5mm / 0.15"
  • Weight: 4.6g
