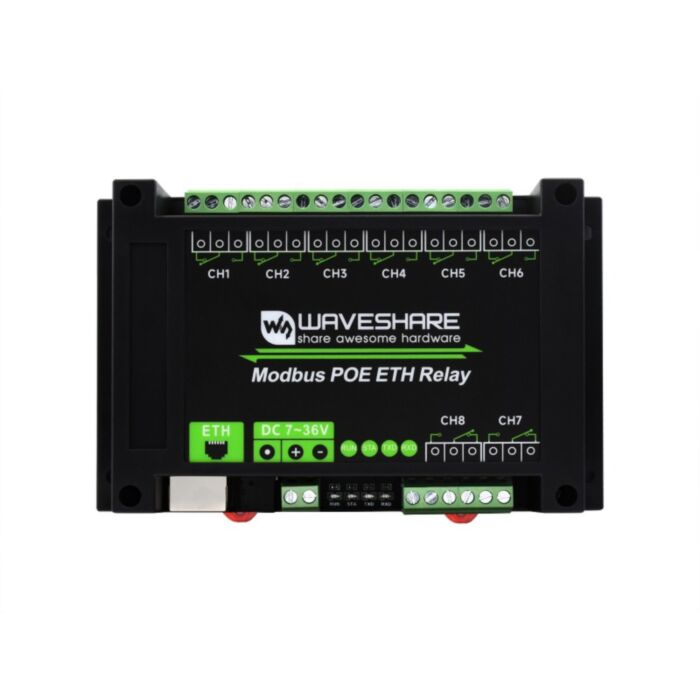

8-ch Ethernet Relay Module

SKU: WS-24964 Brand: Waveshare
8-ch Ethernet Relay Module, Modbus RTU/Modbus TCP Protocol, PoE port Communication, With Various Isolation And Protection Circuits, Industrial Grade...
Special Price $51.95 AUD, inc GST
Regular Price $68.90 AUD, inc GST
$47.23 AUD, exc GST
Special pricing ends 23 June 2025
* this special may end earlier than shown

Available with a lead time
Expect dispatch between Apr 09 and Apr 14

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

8-ch Ethernet Relay Module, Modbus RTU/Modbus TCP Protocol, PoE port Communication, With Various Isolation And Protection Circuits, Industrial Grade Rail-mount Case 8-ch Ethernet Relay Module

Ethernet Port Communication, Modbus Protocol, PoE Power Supply

Features

This product is an industrial 8-ch relay module controlled via Ethernet port, adopts Modbus RTU/Modbus TCP protocols, supports PoE power supply, also comes with an ABS rail-mount case.

The Modbus POE ETH Relay is very easy to use. Due to its fast communication, stability, reliability, and safety, it is an ideal choice for industrial control equipments and/or applications with high communication requirements.

  • Features flash-on, flash-off function, by passing argument to the command, it is possible to turn on the relay for a while and then close it automatically
  • Supports DC 7~36V wide range power input and PoE power supply
  • Supports relay control through MQTT protocol, comes with Alibaba Cloud MQTT application demo
  • Onboard Optocoupler isolation, prevent the relay from being interfered by high-voltage circuit
  • Reverse-proof circuit, prevent the circuit from being damaged accidentally by incorrect connection
  • High-quality relay, contact rating: =10A 250VAC/30VDC
  • Rail-mounted ABS case, easy to install, safe to use
  • 4 LEDs and Network indicators for indicating the MCU status and signal transceiving status

Specifications

Power supply PoE port, DC 5.5*2.1 power port, or Screw terminal (7~36V)
Communication interface PoE port, IEEE 802.3af compliant
Relay channels 8
Contact form 1NO 1NC
Contact rating =10A 250VAC/30VDC
Modbus Protocol Modbus RTU Protocol or Modbus TCP Protocol
LED indicators RUN: Ethernet port indicator, blinking in 2-second cycles when Ethernet port normally working
STA: MCU indicator, blinking when the MCU normally working
TXD: TX indicator, lights up when sending data
RXD: RX indicator, lights up when receiving data
?
