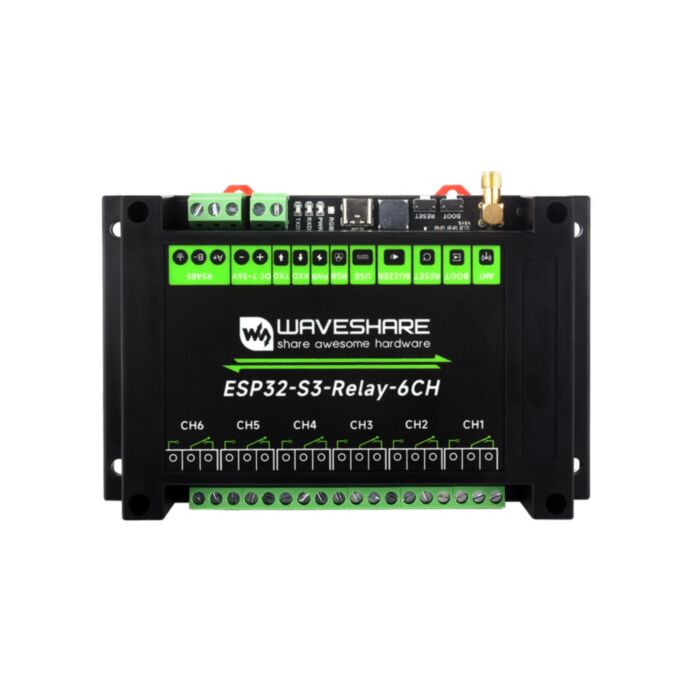

Industrial 6-Channel ESP32-S3 WiFi Relay Module

SKU: WS-26756 Brand: Waveshare

Industrial 6-Channel ESP32-S3 WiFi Relay Module, Supports WiFi / Bluetooth / RS485 control, Onboard RS485 / Pico HAT interfaces, With Multiple Isolation...

$49.25 AUD, inc GST

$44.77 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 06 and Jan 09

Quantity Discounts:

10-25 $43.43 (exc GST)
25+ $42.54 (exc GST)

This module utilises the ESP32 microcontroller, which features a powerful Xtensa 32-bit LX7 dual-core processor running at up to 240 MHz. It supports both 2.4GHz Wi-Fi and Bluetooth LE for flexible wireless communication with excellent RF performance. The module includes a high-capacity relay rated at 10A for 250VAC or 30VDC, suitable for robust applications. It comes with an isolated RS485 interface for connecting to various Modbus devices or industrial sensors. Additionally, it has a 40-pin header compatible with some Raspberry Pi Pico HATs, allowing for easy expansion to integrate functions like RTC, CAN, RS232, LoRa, or additional sensors. Power management is straightforward with an onboard USB Type-C port for power, firmware updates, and debugging, as well as a power supply screw terminal that accepts 7-36V inputs, ideal for industrial settings. The module’s design includes optocoupler and digital isolations to minimize interference from external sources, ensuring reliable operation. It provides a self-contained power supply isolation, so no extra power source is needed for the isolated terminal. Also included are a buzzer, RGB LED, and indicators for power and RS485 activity, making it easy to monitor system status. The durable rail-mounted ABS case makes installation simple and secure.

Specifications

Microcontroller: ESP32-S3 (Default module: ESP32-S3-WROOM-1U-N8, customizable for other modules)
Wireless communication: 2.4GHz WiFi (802.11 b/g/n) and Bluetooth 5, BLE
USB Connector: USB Type-C
Power supply: 5V
Functions: Power supply, USB communication, firmware downloading, etc.
ISOLATED RS485 Connector: Screw terminal
Direction control: Hardware automatic control
Protection: TVS diode, surge protection, and ESD protection
Resistor: Onboard reserved 120R matching resistor, enabled via jumper (NC by default)
Expanded interface: Onboard 40-pin header compatible with some Raspberry Pi Pico HATs for expanding other functions such as RTC, CAN, RS232, LoRa, sensors, etc.
Relay Contact rating: Up to 10A 250VAC/30VDC
Relay channels: 6
Power supply Screw terminal: Voltage range of 7~36V

What's On Board

ESP32-S3 up to 240MHz operating frequency, with 2.4GHz WiFi and BLE
6-channel quality relayscontact rating per channel: =10A 250V AC or =10A 30V DC
Optocoupler isolationprevents interference from external high-voltage circuit connected to the relay
Digital isolationprevents interference from external signal
Power supply isolationprovides stable isolated voltage, needs no extra power supply for the isolated terminal
TVS diodeeffectively suppresses surge voltage and transient spike voltage in the circuit
Ceramic gas discharge tube
Relay screw terminals for connecting with user devices
40PIN Raspberry Pi Pico HAT header
RS485 bus interface for connecting to external RS485 devices

Power supply screw terminalSupports DC 7~36V wide voltage input
LED indicators PWR: power indicator RXD: RS485 RX indicator TXD: RS485 TX indicator
WS2812 RGB LED controllable via GPIO38
USB Type-C connector for module power supply, firmware downloading and USB communication
Passive buzzersound frequency is controllable via GPIO21
ESP32 RESET button
ESP32 BOOT button
External antenna connector SMA female connector, for WiFi and Bluetooth wireless communication
RS485 matching resistor jumperOnboard reserved 120R matching resistor, enabled via jumper
Relays default control pin setting

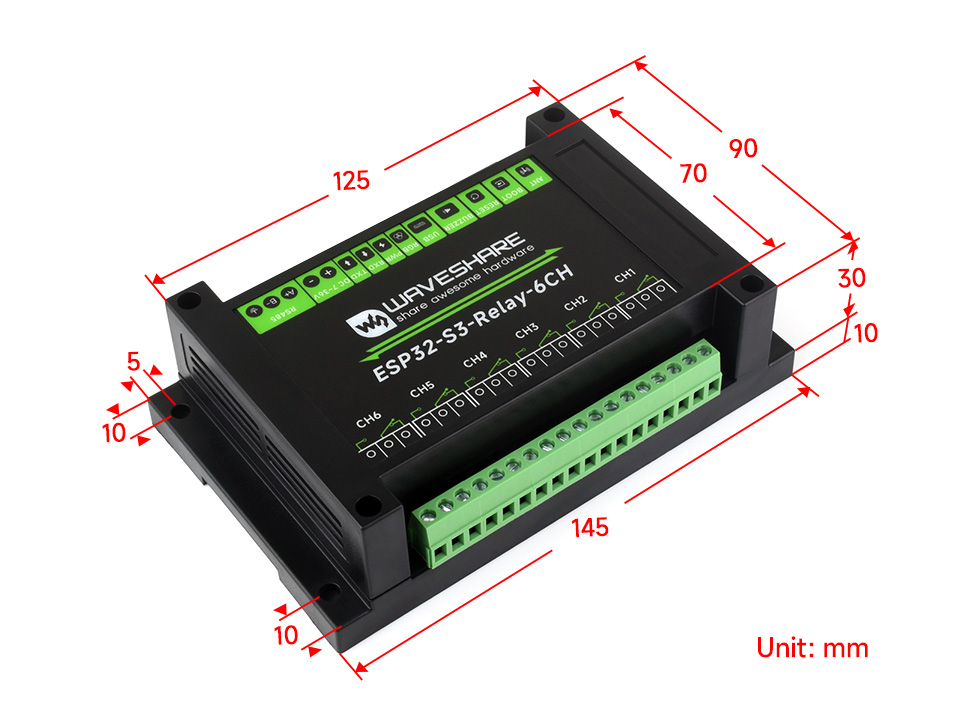

Dimensions

Documents

Wiki

Shipping List

1 x ESP32-S3-Relay-6CH
1 x 2.4G 4DB SMA antenna
1 x Screwdriver
