Industrial 8-Channel Relay Module for Raspberry Pi Pico

Rating:
100% of 100
SKU: WS-20218 Brand: Waveshare
Industrial 8-Channel Relay Module For Raspberry Pi Pico, Power Supply Isolation, Photocoupler Isolation...
$31.60 AUD, inc GST
$28.73 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 10th of Dec

Quantity Discounts:

  • 10-25 $27.86 (exc GST)
  • 25+ $27.29 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

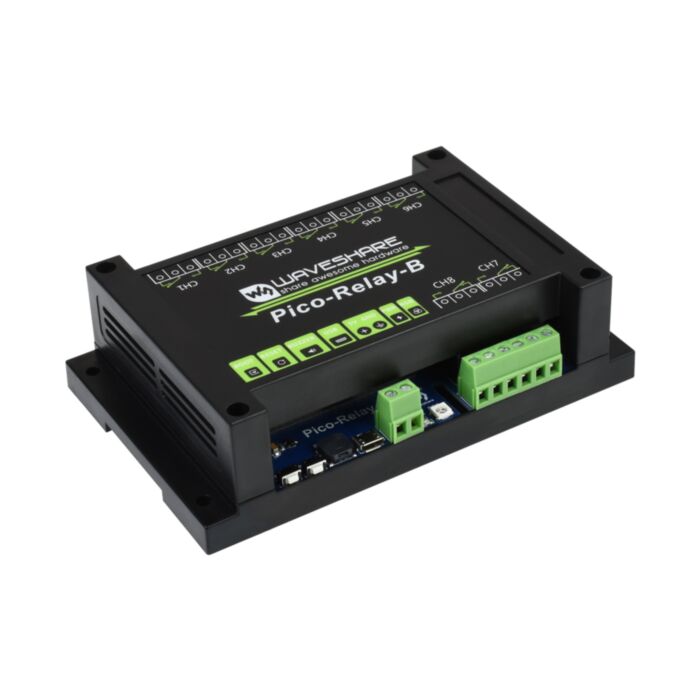

The device includes photocoupler isolation to protect against interference from external high-voltage circuits connected to the relay. It features a robust relay rated for 10A at 30V DC. Housed in an ABS enclosure with rail-mount support, it's easy to install and safe to use. A breakout USB port and BOOT pin simplify debugging without needing to open the enclosure. Outside the enclosure, you'll find a PWR indicator, an RGB LED, and a passive buzzer.



Specifications

Operating voltage: 5V

Relay channels: 8 Channels

Communication protocol: USB

Contact form: 1NO 1NC

Communication interface: Micro USB



What's On Board

  1. Raspberry Pi Pico header
  2. Relay screw terminal - for connecting external devices
  3. Power supply screw terminal - the multi relays are connected in parallel
  4. Pogo pins
  5. USB communication port - connected via pogo pins
  6. BOOT key - connected via pogo pins
  7. Reset key - Pico reset
  8. Passive buzzer - controllable sound frequency
  9. Power indicator
  10. WS2812 RGB LED
  11. 8-channel quality relays - contact rating per channel: =10A 250V AC or =10A 30V DC
  12. Relay operating indicator
  13. Photocoupler isolation - prevent interference from external high-voltage circuit connected to the relay
  14. Power supply isolation - provides stable isolated voltage, needs no extra power supply for the isolated terminal
  15. Thickened tracks - allows large current devices

Pinout

Dimensions
