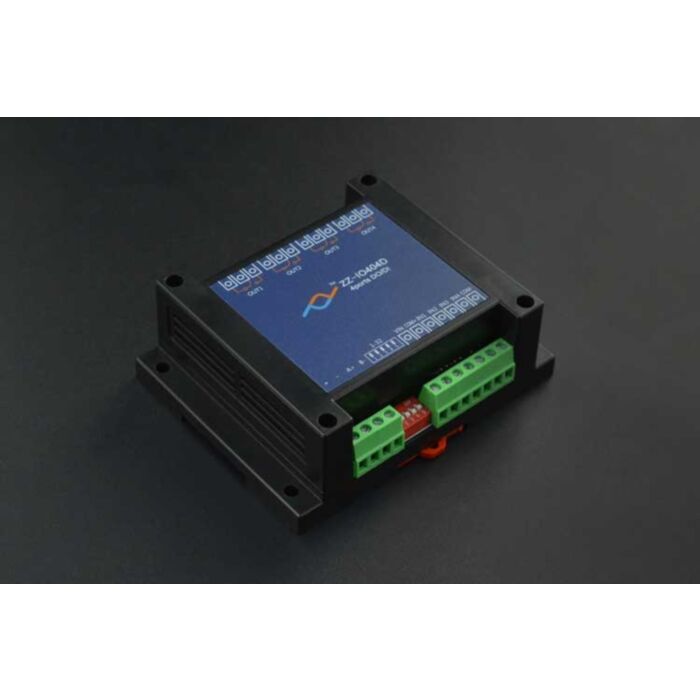

Industrial 4-Channel Relay Module

SKU: FIT0827 Brand: DFRobot

The module adopts the standard Modbus RTU protocol, the communication interface supports RS485 or RS232 and supports communication baud rates of 2400, 4800, 9600...

$51.35 AUD, inc GST

$46.68 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

6-12 $45.28 (exc GST)
12+ $44.35 (exc GST)

The module adopts the standard Modbus RTU protocol, the communication interface supports RS485 or RS232 and supports communication baud rates of 2400, 4800, 9600, 19200, 38400 (default 9600). Each relay output is independent and can be connected to different load devices, such as 220V electric lights, 24V solenoid valves, etc. Both AC and DC devices can be controlled. Each relay output contact is isolated and can set 0-255 device addresses. It can be switched on and off very quickly. This industrial 4-channel relay module allows you to control your electrical equipment only through one computer serial port. It supports DC7-30V wide voltage power supply, optocoupler isolation, four-way switching input, and four-way relay output. The management and controlling of electrical equipment can be completed by a computer, which makes this module able to be widely used in scenarios like factories, hotels, etc., as well as lighting control in stages, homes, cinemas, etc., and can also be used for motor control, production line control, etc.

The module adopts the standard Modbus RTU protocol, the communication interface supports RS485 or RS232 and supports communication baud rates of 2400, 4800, 9600, 19200, 38400 (default 9600). Each relay output is independent and can be connected to different load devices, such as 220V electric lights, 24V solenoid valves, etc. Both AC and DC devices can be controlled. Each relay output contact is isolated and can set 0-255 device addresses. It can be switched on and off very quickly. The module adopts the standard Modbus RTU protocol, the communication interface supports RS485 or RS232 and supports communication baud rates of 2400, 4800, 9600, 19200, 38400 (default 9600). Each relay output is independent and can be connected to different load devices, such as 220V electric lights, 24V solenoid valves, etc. Both AC and DC devices can be controlled. Each relay output contact is isolated and can set 0-255 device addresses. It can be switched on and off very quickly.

Specification

Contact Capacity: 10A/30V DC, 10A/250V AC
Durability: 100,000 times
Data Interface: RS485
Rated Voltage: DC 7-30V
Power Indicator: 1 red LED indicator
Output Indicator: 4 red LED indicators
Temperature Range: industrial grade, -40°C ~ 85°C
Default Communication Format: 9600, n, 8, 1
Baud Rate: 2400, 4800, 9600, 19200, 38400
Size: 115*95*41mm / 4.53*3.74*1.61 inch

Parts List

Industrial 4-Channel Relay Module x1

Resources

Instruction Manual
