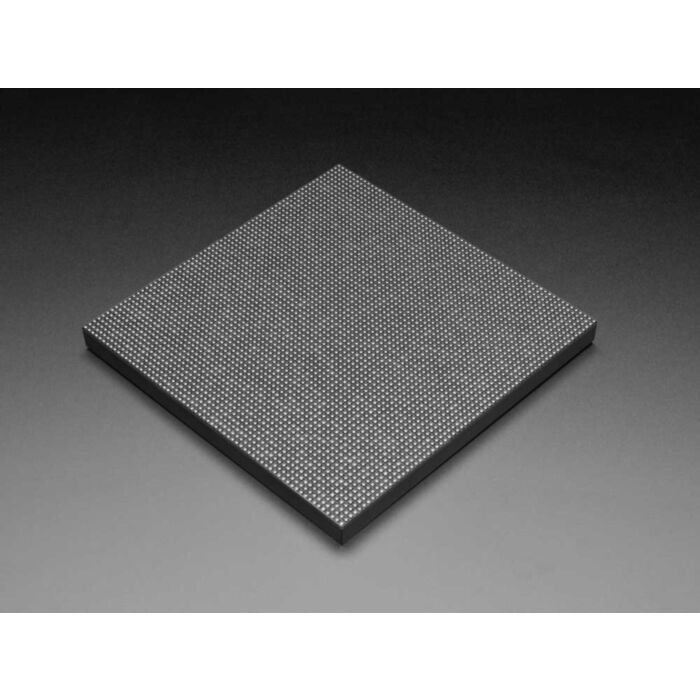

64x64 RGB LED Matrix - 3mm Pitch - 192mm x 192mm
Available with a lead time
Expect dispatch between Nov 20 and Nov 25
Quantity Discounts:
- 5-10 $119.00 (exc GST)
- 10+ $116.55 (exc GST)
Winter time can be rough in the city. The sky is gray. The weather is unpredictable. So slough off those seasonal blues with some Times Square razzle dazzle from this sweet, ultra-high-density 64x64 RGB LED Matrix. These panels are typically used to make video walls. Here in New York Adafruit see them on the sides of buses and on top of taxi cabs displaying animations or video advertisements. Adafruit thought they looked really cool, so they picked up a few boxes of them from a factory. They have 4,096 bright RGB LEDs arranged in a 64x64 grid at a 3mm pitch.
WARNING! These 64-pixel tall matrices use a non-standard 5-address multiplexing system!
Many add-ons or drivers use only a 4-address (ABCD) setup. You can use these matricies with our RGB Matrix Bonnet for Raspberry Pi, RGB Matrix HAT (you'll need to connect a solder jumper) or Matrix Portal (ditto, jumper required). Other libraries such as Adafruit's Arduino shield with Adafruit library or Adafruit's HDMI driver boards don't support 5-address multiplexing!
The SmartLED Shield in combination with the Teensy 3.5/3.6 has the hardware for driving these 5-address panels, and enough RAM to refresh the 4096 pixels, however the power plug must be manually soldered/adapted because the shield overlaps it.
Full Kit Contents:
- 64x64 RGB panel
- IDC ribbon cable (~16cm)
- power cable (~50cm)
There may be slight variations between each product based on what supplier Adafruit use, but the overall shape/use/functionality is identical.
Note: This does not include 4 mounting screws and mini-magnets, however we do have them available separate here!
Technical Specifications
- Brightness: 2800cd/square meter
- Size: 192mm x 192mm
- Pitch: 3M
- 5 Addressable Pins
- Compatible with M3 mounting screws
- Scan: 1/32
- Refresh Frequency: >=400HZ
- Waterproof Class: IP43
- Weight: 235g (only matrix panel) / 269g (w/ components)
- CAD file download
- Best for indoor use
