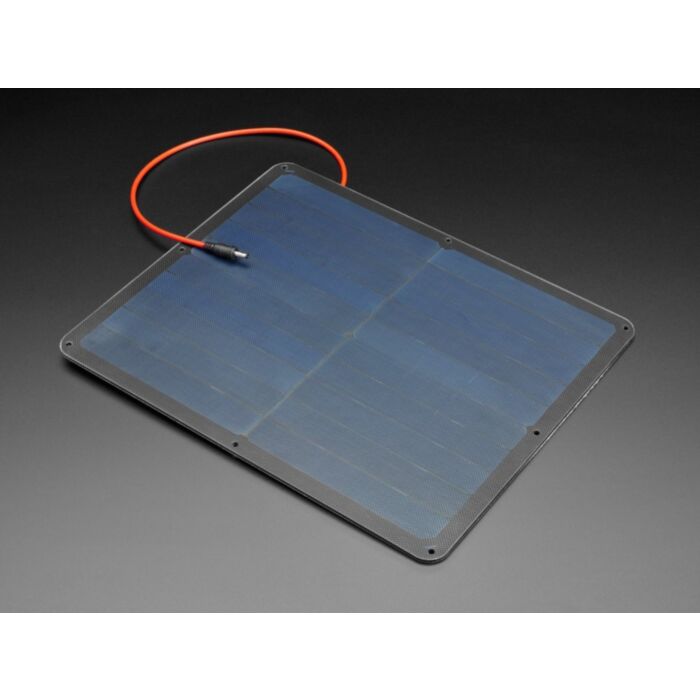

5V 10W Solar Panel - ETFE - Voltaic P110

SKU: ADA5369 Brand: Adafruit

These panels come to us from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch-resistant, and UV resistant, and...

$179.95 AUD, inc GST

$163.59 AUD, exc GST

Available with a lead time
Expect dispatch between May 10 and May 13

Quantity Discounts:

5-10 $158.68 (exc GST)
10+ $155.41 (exc GST)

These panels come to Adafruit from Voltaic Systems, makers of fine solar-powered bags and packs. These are waterproof, scratch-resistant, and UV resistant, and they use 10 high-efficiency monocrystalline SunPower cells with 22+% efficiency (praise the sun!). Each cell has a nominal voltage of 0.5V so they call this a "5V" panel

They output a nominal 5V at a 1,670mA peak via a 3.5mm x 1.1mm DC jack connector. The panel is constructed with ETFE (Ethylene Tetrafluoroethylene), making it extremely durable and resistant to environmental elements, a superior upgrade to PET or laminate solar panel construction. They can easily stand up to typical outdoor use, including being dropped and leaned on.

To connect, we suggest a 3.5mm OD/1.1mm ID DC jack or you can use this handy 2.1mm adapter cable which will turn it into a standard 5.5mm/2.1mm DC plug

If you want to use this to charge a battery or run your project, check out Adafruit's optimized Solar Lithium Ion/Polymer charger!

Technical Details

Features

Waterproof (IP67)
UV resistant (5-7 year life)
Durable and lightweight
High-efficiency monocrystalline cells: 20%
Compatible with the Medium Solar Panel Bracket using Voltaic's ETFE Panel Screw & Washer Set
6 mounting holes
12" cable with optional waterproof extensions

Size and Weight

22.3 x 27.4 x 0.4 cm
328 grams

Output

Open Circuit Voltage: 6.94V
Peak Voltage: 5.71V
Peak Current: 1,670mA
Peak Power: 9.54W
Power Tolerance: +/-10%
For maximum power output, orient the panel towards the sun

Construction

Matte ETFE coating
2.0mm FR4

Output Cable

Cable Length: 50cm
Cable Color: Red PU Coated
Plug: Waterproof Male 3.5x1.1mm
Extend the cable length using 1 foot, 4 foot, and 10-foot extension cables
Solder directly to a PCB using extension with exposed leads

Warranty

2-year warranty on solar panels
For more warranty information, see the warranty guide

Dimensional Drawing
