5V 1.8A Isolated Output PoE Module Works with Raspberry Pi 3 B+

SKU: ADA3848 Brand: Adafruit
Power over Ethernet (PoE) can make your project wiring a breeze - instead of needing a wire for power and data, you can use one Ethernet cable for both! All you...
$32.20 AUD, inc GST
$29.27 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 05 and Apr 08

Quantity Discounts:

  • 10-25 $28.10 (exc GST)
  • 25+ $27.23 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Power over Ethernet (PoE) can make your project wiring a breeze - instead of needing a wire for power and data, you can use one Ethernet cable for both! All you need is this handy PoE module and access to the center-taps on your Ethernet-capable board. Attach the four input wires, and get regulated 5V 1.8A on the other side. Amazing!

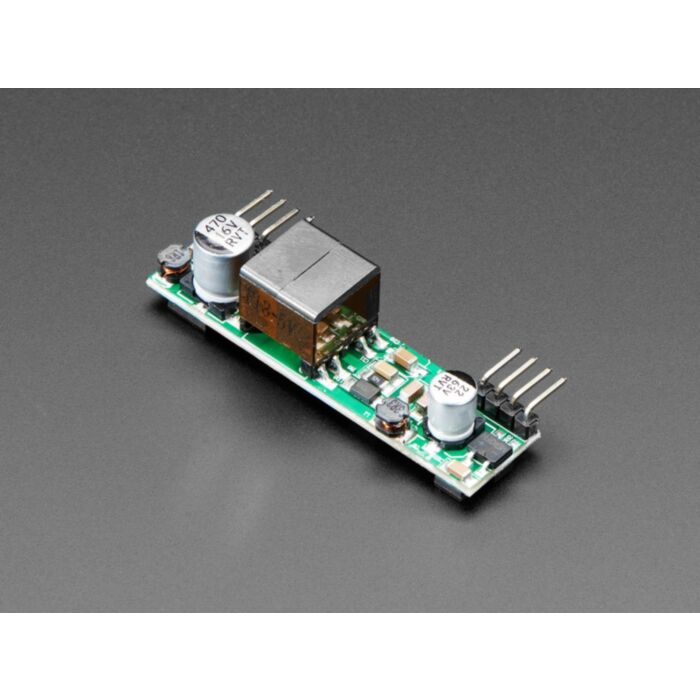

This version of the PoE module has a transformer in the center, that's the big chunky thing so that there is no direct electrical connection between the 5V power/ground and Ethernet cables.

This module works well with the Raspberry Pi 3 Model B+, which has the 4 wires on a header. As you can see in Adafruit's photos, you just need some female-female jumper wires to get the Ethernet wires to the module, and then two wires to bring the 5V back to the header. Note that even though a 2.5A power supply is recommended for a Pi 3B+, that's only required if you attach a bunch of accessories (such as a 7" display!) 1.8A will cover a wide range of usages, as the current draw is around 0.7A max without extras.

If you don't have access to those pins, but can power your board or computer with a micro USB cable, check out Adafruit's 5V microUSB PoE Splitter. It's bigger and more expensive but really easy to use Great for older Raspberry Pi's (not the 3 B+), Feathers, etc)

We also have an non-isolated version of this module, when you don't need electrical separation.

Technical Details

To use:

  1. Connect pins 1 and 2 to Ethernet wires 4 and 5
  2. Connect pins 3 and 4 to Ethernet wires 7 and 8
  3. Pin labeled (-) is ground output
  4. Pin labeled (+) is 5V out
  • Input Voltage range: 42 to 55 VDC (48V nominal)
  • Output Voltage range: 4.75 to 5.25V (5V nominal)
  • Output current: 1.8A nominal
  • Efficiency: 80%
