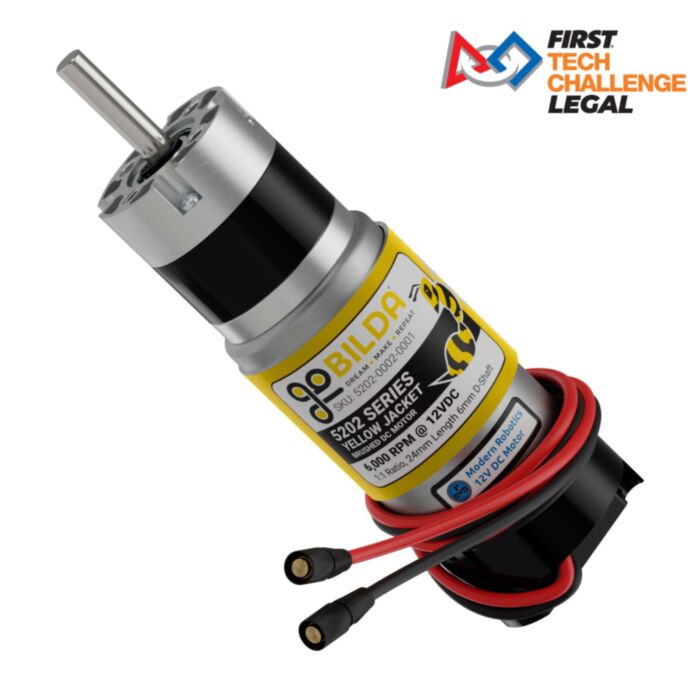

This Yellow Jacket has the same look and feel as the rest of the herd but has vastly different insides. The shaft of the motor is directly connected to the output shaft. What would normally be considered the gearbox remains to provide excellent support for the 6mm D-shaft that will be used to fasten a hub, gear, sprocket or pulley onto. It also serves as a built-in motor mount. The 16mm pattern M4 holes will align with nearly any goBILDA component. If your project desires more adjustability than what the face-style mounting option provides, consider sliding the gearbox housing into a 32mm clamp and slide it fore and aft until you find that perfect location.
Motor Type | Brushed DC |
---|---|
Nominal Voltage | 12VDC |
Output Shaft | 6mm D |
Gearbox Style | Planetary |
Gear Ratio | 1:1 |
No-Load Speed @ 12VDC (Theoretical) | 6,000 RPM |
No-Load Speed @ 12VDC (Tested) | 5,400 RPM |
No-Load Current @12VDC | 0.25A |
Stall Current @12VDC | 9.2A |
Stall Torque @12VDC | 1.47 kg.cm (20.45 oz-in) |
Wire Length | 470mm (including connectors) |
Wire Gauge | 18AWG |
Motor Connector Type | 3.5mm FH-MC Bullet Connectors |
Encoder Connector Type | 4-Pos JST XH [FH-MC] |
Encoder Type | Relative, Quadrature |
Encoder Sensor Type | Magnetic (Hall Effect) |
Encoder Voltage Range | 3.3 - 5VDC |
Encoder Resolution | 28 PPR at the Output Shaft |
Weight | 383g |
