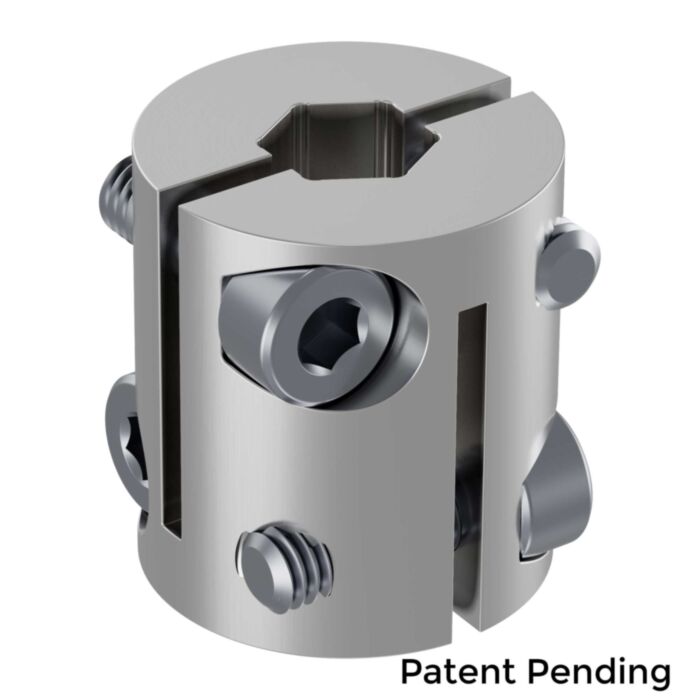

4007 Series Hyper Coupler (6mm D-Bore to 8mm REX Bore)

SKU: GB-4007-1006-4008 Brand: goBilda

This 6mm D-Bore to 8mm REX bore Hyper Coupler is a strong, compact, balanced way to couple two shafts together. Maybe you have motors with.....

$15.50 AUD, inc GST

$14.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 25th of Feb

Quantity Discounts:

10-25 $13.39 (exc GST)
25+ $12.68 (exc GST)

This 6mm D-Bore to 8mm REX™ bore Hyper Coupler is a strong, compact, balanced way to couple two shafts together. Maybe you have motors with 6mm d-shafting but you want to step up your game and run 8mm REX™ to handle higher torque loads. Maybe you’re going the other way due to a surplus of 6mm D-bore pinion gears, hubs, sprockets, etc. The diameter of the coupler has been thoughtfully chosen so that, when installed, you can still access screws on the 16mm pattern with the use of a hex key. The length is such that, when a motor with a 24mm length shaft is installed perpendicular to 1120 Series U-Channel, the coupler can slide in between the end of the shaft, and the inside wall of the U-Channel. And as with all ‘Hyper’ parts, this too is balanced so you can spin it up without concern of creating unwanted vibrations through your drivetrain.

Downloads

STEP File

Specs

Weight	17g
Material	Aluminum
Finish	Clear Anodized
IP	Patented

This product is listed in:

goBILDA>MOTION>Couplers>Shop by Style>Hyper Couplers
goBILDA>MOTION>Couplers>Shop by Bore>8mm REX Bore Couplers
goBILDA>MOTION>Couplers>Shop by Bore>6mm Bore Couplers
