5” 800×480 IPS Touchscreen with Optical Bonding (Compatible with Raspberry Pi 4B/3B+/3B)

Skip to the beginning of the images gallery

5” 800×480 IPS Touchscreen with Optical Bonding (Compatible with Raspberry Pi 4B/3B+/3B)

SKU: DFR0550-V2 Brand: DFRobot

The 5-inch IPS capacitive touchscreen display supports the Raspberry Pi DSI interface. Features plug-and-play, anti-fingerprint, and anti-glare...

$99.25 AUD, inc GST

$90.23 AUD, exc GST

Quantity Discounts:

6+ $86.62 (exc GST)
12+ $83.91 (exc GST)

Out of Stock

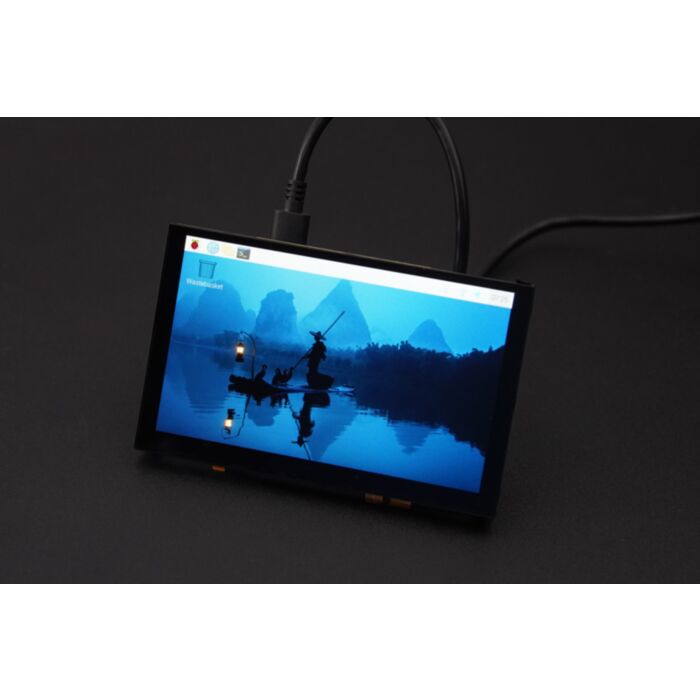

This is a 5-inch IPS capacitive touchscreen display with a resolution of 800×480. It supports the Raspberry Pi DSI interface,allowing for quick and easy connection to the Raspberry Pi3B / 3B+ / 4B single-board computer.

In the use of the Raspberry Pi, the touchscreen plays a significant role, serving as a key interface for interaction, information display, and content presentation. The Raspberry Pi's versatility, expandability, and ease of development make it highly potential for various projects. If your project revolves around the Raspberry Pi and requires a medium-sized touchscreen display, this product would be an excellent choice.

Note: The screen does not support compatibility with Raspberry Pi 5.

Installation Diagram of the Display and Raspberry Pi

Figure: Installation Diagram of the Display and Raspberry Pi

This product has been optimized and upgraded based on the old version 5" 800x480 TFT Raspberry Pi DSI Touchscreen (Compatible with Raspberry Pi 3B/3B+/4B), with excellent quality parameters. It adopts IPS hard screen technology and full lamination process, with a high brightness of 550cd/?. These features enable it to present a wide viewing angle, outstanding response speed, clear and bright images, high color reproduction, as well as the advantages of being less prone to dust and durable. In addition, the surface of the display has been treated with anti-fingerprint and anti-glare, allowing it to perform well even under outdoor sunlight.

Version differences of Raspberry Pi DSI fully laminated touch screen

Features

800×480 resolution

High brightness of 550cd/?

IPS hard screen

Full lamination process

Anti-fingerprint and anti-glare surface treatment

5-point capacitive touch

Raspberry Pi DSI plug-and-play

Compatible with Raspberry Pi 3B/3B+/4B

Applications

Raspberry Pi IoT projects

Raspberry Pi personal computer

Raspberry Pi server

Raspberry Pi gateway

Specification

Basic Parameters

Operating voltage: 3.3V (provided by the Raspberry Pi display interface)

Static operating current: approximately 700mA

Display interface: Raspberry Pi DSI

Mounting hole diameter: M2.5

Raspberry Pi mounting hole dimensions: 58mm x 49mm

Display screen mounting hole dimensions: 113mm x 68mm

Weight: 175.6g

Screen Parameters

Display area size: 5.0 inches

Resolution: 800×480

Pixel pitch (mm): 0.045(H)×0.135(V)

Color display: 16.7M

Display mode: usually black, transmissive

Color arrangement: RGB stripe

Data interface: RGB 24-bit, digital (TTL)

Viewing angle: full viewing angle

Contrast ratio: 1200

Response time: 30ms

Bonding method: full bonding

Brightness: 550cd/?

Touchpoints: 5-point capacitive

Refresh rate: 60Hz

Surface treatment: anti-fingerprint, anti-glare

Viewable area (mm): 108.0(W)×64.8(H)

Dimensions (mm): 120.7(W)×75.8(H)×4.9(T)

Documents

Parts List

5" 800×480 Raspberry Pi DSI fully laminated touch screen x1

FFC connection cable 50mm x1

M2.5*6 installation screws x8
