5" 800x480 TFT Raspberry Pi DSI Touchscreen

Rating:
93% of 100
SKU: DFR0550 Brand: DFRobot

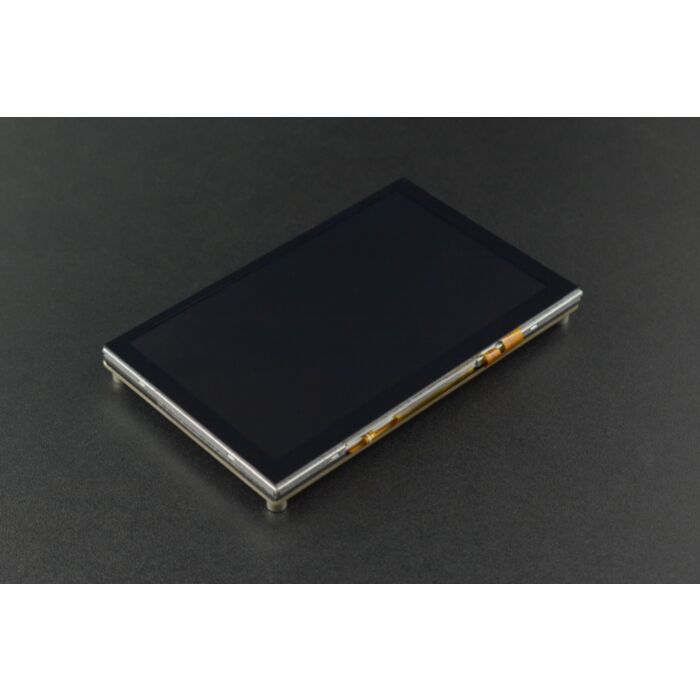

This is a 5" Raspberry Pi LCD touchscreen with 800*480 resolution and 108×64.8mm display area. The product uses the Raspberry Pi DSI display interface

$87.50 AUD, inc GST
$79.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 10th of Dec

Quantity Discounts:

  • 6-12 $77.16 (exc GST)
  • 12+ $75.56 (exc GST)
- +

4 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a 5" Raspberry Pi LCD touchscreen with 800*480 resolution and 108×64.8mm display area. The product supports Raspberry Pi DSI display interface and comes with a capacitive touch panel on its screen and supports 5 touch points.

DFR0550-Raspberry Pi Display


The special holes design on the back of the screen is convenient to directly install the Raspberry Pi in the product. There is no need to provide external power for the touchscreen as the Raspberry Pi power supply is adopted. In addition, the screen supports hardware backlight adjustment. The function can be realized by turning the potentiometer on the back of the display.

DFR0550-Raspberry Pi Touchscreen


Features

  • Capacitive Touchscreen, Support 5 TouchPoints.
  • Raspberry DSI Direct Driver

Specifications

  • Operating Voltage: 3.3V (Supplied by Raspberry Pi display interface)
  • The Maximum Operating Current: 320mA
  • Screen-off Current: 100mA
  • Resolution: 800*480
  • Video Interface: Raspberry Pi DSI
  • Number of Touch Points: 5
  • Viewing Angle: 60°/70°/70°/70°
  • RGB888-16 Mega True Color
  • Refresh Frequency: 60Hz
  • Luminous Efficiency: 280 cd/m2
  • Operating Temperature: -20°C ~ 70°C
  • Dimension: 121mm×76mm / 4.76" × 2.99"
  • Mounting Hole Size: M2.5
  • Outside Mounting Hole Position: 113mm × 68mm/ 4.45" × 2.68"
  • Inside Mounting Hole Position: 58mm x 49mm/ 2.28" x 1.93"
  • 13mm / 0.53" - Distance from bottom of Standoffs to Glass in Display

Contains

  • 1x 5'' TFT-Display with Touchscreen(V1.0)
  • 1x FFC cable 45mm pitch 1.0mm-15pin
  • 8x M2.5*8 Standoffs (pre-fitted to display)
  • 8x M2.5*6 DK4.9 Machine Screws
