2.8 TFT LCD with Touchscreen Breakout Board w/MicroSD Socket - ILI9341

SKU: ADA1770 Brand: Adafruit
Add some jazz & pizazz to your project with a color touchscreen LCD. This TFT display is big (2.8" diagonal) bright (4 white-LED backlight) and colorful! 240x320...
$60.65 AUD, inc GST
$55.14 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 1st of Apr

Quantity Discounts:

  • 6-12 $52.93 (exc GST)
  • 12+ $51.27 (exc GST)
- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

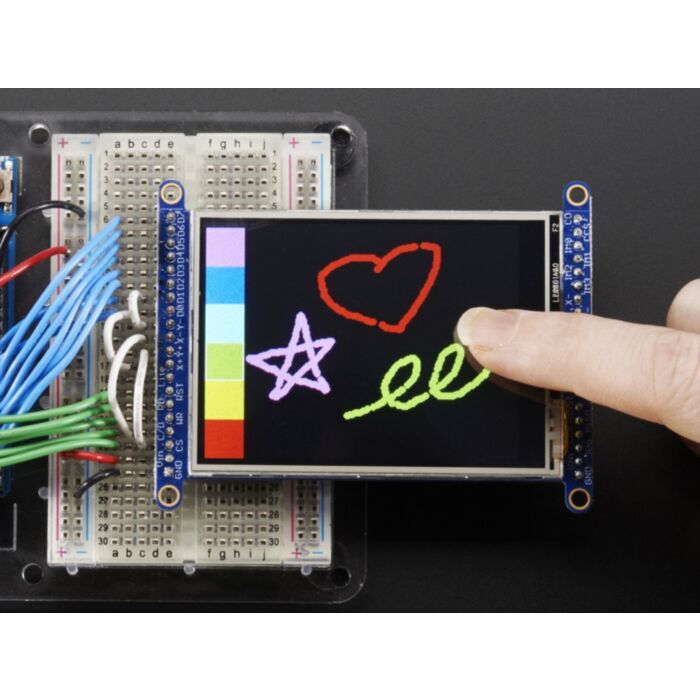

Add some jazz & pizazz to your project with a color touchscreen LCD. This TFT display is big (2.8" diagonal) bright (4 white-LED backlight) and colorful! 240x320 pixels with individual RGB pixel control, this has way more resolution than a black and white 128x64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen. We also have a version of this display breakout with a capacitive touchscreen.

This display has a controller built into it with RAM buffering, so that almost no work is done by the microcontroller. The display can be used in two modes: 8-bit and SPI. For 8-bit mode, you'll need 8 digital data lines and 4 or 5 digital control lines to read and write to the display (12 lines total). SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and d/c) but is slower than 8-bit mode. In addition, 4 pins are required for the touch screen (2 digital, 2 analog) or you can purchase and use Adafruit's resistive touchscreen controller (not included) to use I2C or SPI

Adafruit wrapped up this display into an easy-to-use breakout board, with SPI connections on one end and 8-bit on the other. Both are 3-5V compliant with high-speed level shifters so you can use with any microcontroller. If you're going with SPI mode, you can also take advantage of the onboard MicroSD card socket to display images. (microSD card not included, but any will work)

Of course, Adafruit wouldn't just leave you with a datasheet and a "good luck!". For 8-bit interface fans Adafruit have written a full open source graphics library that can draw pixels, lines, rectangles, circles, text, and more. For SPI users, Adafruit have a library as well, its separate from the 8-bit library since both versions are heavily optimized. We also have a touch screen library that detects x, y and z (pressure) and example code to demonstrate all of it.

Follow Adafruit's step by step guide for wiring, code and drawing. You'll be running in 15 minutes

If you are using an Arduino-shaped microcontroller, check out Adafruit's TFT shield version of this same display, with SPI control and a touch screen controller as well

//www.youtube.com/embed/VU-JMVkbCP8?start=625

Technical Details

Specifications:

  • 8 bit digital interface, plus 4 or 5 control lines (12 pins minimum) or SPI mode with 4 or 5 SPI data/control lines (4 pins minimum) - not including the touch screen.
  • 5V compatible! Use with 3.3V or 5V logic such as an Arduino
  • Onboard 3.3V @ 150mA LDO regulator
  • 4 white LED backlight, transistor connected so you can PWM dim the backlight
  • 1x20 headers for easy breadboarding
  • 4-wire resistive touchscreen
  • Thickness: 7.9mm / 0.3"
  • Weight: 40g

EagleCAD PCB files, datasheets and Fritzing objects in the Adafruit Fritzing library
