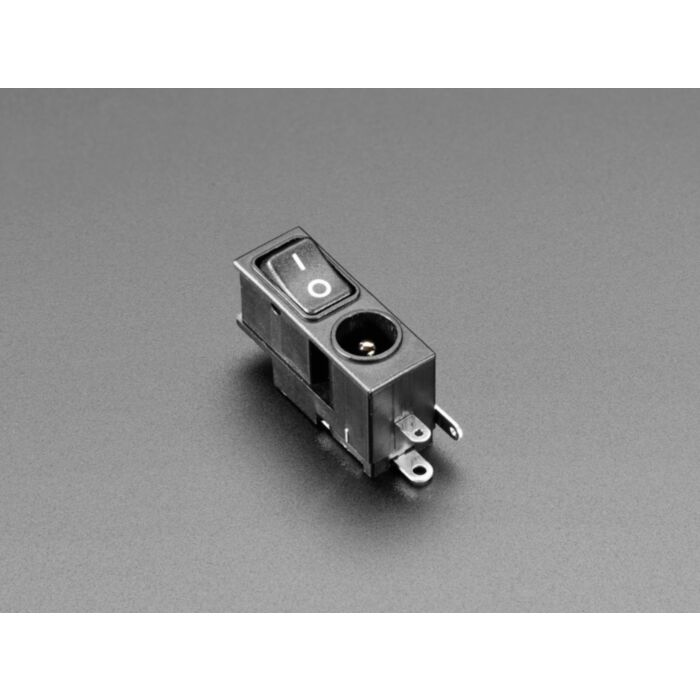

2.1mm DC Power Jack with Rocker Switch

Rating:

100% of 100

SKU: ADA3643 Brand: Adafruit

This brilliant invention is a blessing for makers designing or using boards with standard 2.1mm DC barrel jacks. Many devices opt against a proper power switch...

$4.05 AUD, inc GST

$3.68 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 25 and Dec 30

Quantity Discounts:

10-25 $3.54 (exc GST)
25+ $3.43 (exc GST)

This brilliant invention is a blessing for makers designing or using boards with standard 2.1mm DC barrel jacks. Many devices opt against a proper power switch, for size or cost or other design reasons. So, you're expected to unplug when not in use. But you want something a little fancier! This 2.1mm DC Power Jack with Rocker Switch has the same PCB layout as classic non-switched jacks but has a li'l extra on top - a labeled slide switch!

The slide switch does exactly what you'd expect: plug in your power supply (up to 16 VDC, 3A) and switch power on and off. On and off! On and off all daayyy-o. You can clicky-clack to your maker heart's delight! Adafruit swear Adafruit are not pulling your lead--I mean, leg, this has a seriously satisfying clack.

We also have a version with a slide switch here

Technical Details

Electrical Rating: 15VDC 2.5A
Contact Resistance: < 20 mO (initial)
Insulation Resistance: > 1000 MO @ 500VDC
Dielectric Strength: > 1500V @ 1 min.
Life: 6,000 cycles
Contact material: Copper alloy with silver plating
Switch Circuit: SPDT
RoHS compliant: Yes

Product Dimensions: 28.0mm x 16.8mm x 8.9mm / 1.1" x 0.7" x 0.4"

Product Weight: 3.0g / 0.1oz

Diagram
