12mm Hex Wheel Adapter for 6mm Shaft (2-Pack)

SKU: POLOLU-2686 Brand: Pololu

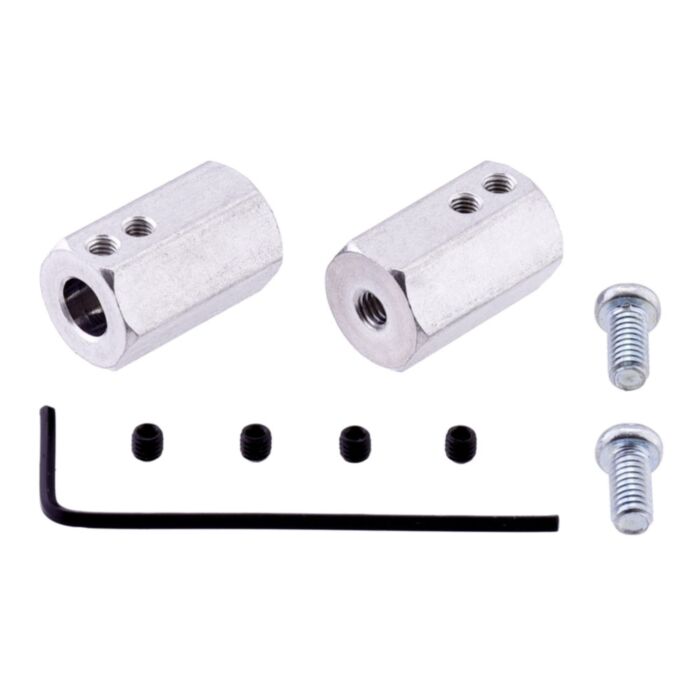

These 20 mm long aluminum adapters convert a 6 mm diameter shaft to a 12 mm hex shaft that is compatible with many common hobby RC wheels. The set includes two adapters, two M4 screws for securing wheels to the adapters, four M3 set screws for securing the adapters to motor shafts, and one 1.5 mm Allen wrench for use with the set screws.
$8.10 AUD, inc GST
$7.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 18th of Nov

Quantity Discounts:

  • 10-25 $7.07 (exc GST)
  • 25+ $6.85 (exc GST)
- +

2 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

These light-weight aluminum shaft adapters convert a typical motor output shaft into a 12 mm hex shaft that is compatible with many common hobby RC wheels, such as the Dagu Wild Thumper Wheels. The side of each adapter that mounts to the wheel contains a hole tapped for M4 screws, and the other side of the adapter mounts to a motor shaft with two M3 set screws. This set includes a pair of adapters, two 8 mm M4 screws, four M3 set screws, and one 1.5 mm Allen wrench for use with the set screws.

The adapters are available in the following versions:

Details for item #2686

12mm Hex Wheel Adapter for 6mm Shaft connecting a Wild Thumper Wheel to a 37D mm Metal Gearmotor.

This version of the 12 mm hex adapter is 20 mm in length and designed to work with 6 mm diameter output shafts, including round and “D” shafts. It works well with Pololu's 37D mm metal gearmotors, as shown in the picture above. The wheel shown in the above picture is a 120×60 mm Dagu Wild Thumper Wheel.

The diagram below shows the dimensions of this shaft adapter and is also available as a downloadable PDF (134k pdf)

Dimension diagram of the Pololu 12mm Hex Wheel Adapter for 6mm Shaft. Units are mm over [inches].

People often buy this product together with:

Pololu Universal Aluminum Mounting Hub for 6mm Shaft, #4-40 Holes (2-Pack)Pololu Universal Aluminum Mounting Hub for 6mm Shaft, #4-40 Holes (2-Pack)
Pololu Stamped Aluminum L-Bracket Pair for 37D mm Metal GearmotorsPololu Stamped Aluminum L-Bracket Pair for 37D mm Metal Gearmotors
Dagu Wild Thumper Wheel 120x60mm Pair with 4mm Shaft Adapters - Metallic RedDagu Wild Thumper Wheel 120x60mm Pair with 4mm Shaft Adapters - Metallic Red

Dimensions

Size: 12 mm hex × 20 mm length
Length: 20 mm
Weight: 5.4 g1
Shaft diameter: 6 mm

General specifications

Style: short

Notes:

1
For a single adapter only (without set screws or mounting screw).
