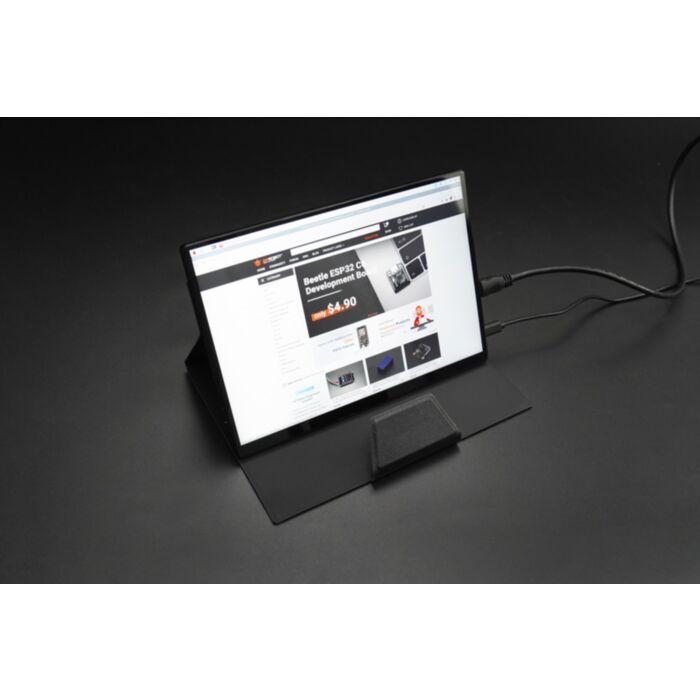

10.5 Inch 1920x1280 LED Touch Portable Monitor for Raspberry Pi / NVIDIA / LattePanda

The 10.5-inch LED touch display is a versatile and portable screen solution that offers 1920x1280 HD resolution, advanced touch technology, and wide compatibility with various electronic devices. It seamlessly connects to a range of development boards, laptops, and other electronics, including LattePanda Sigma / LattePanda 3 Delta single-board computers, Raspberry Pi 4B / Raspberry Pi 5, and NVIDIA series SBCs.

High-Definition Visuals and Advanced Touch Technology

Equipped with a 1920x1280 HD resolution and an IPS panel, this display ensures sharp and vibrant visuals. The fully laminated glass and ten-point touch technology eliminate touch breakpoints, providing a smooth and responsive interaction. The LED backlight enhances brightness, contrast, and color vibrancy, delivering a superior viewing experience.

Lightweight and Portable Design

With a net weight of just 400g, the display is highly portable, making it convenient for users on the go. It comes with a leather case that not only provides protection but also serves as a desktop stand, enhancing its usability in various settings.

10.5-Inch Display Screen Size Diagram

Built-In Stereo Speakers

The display features built-in left and right speakers that are carefully modulated to produce high-quality stereo sound. This audio enhancement complements the visual performance, making it ideal for media consumption and entertainment.

Versatile Connectivity and Broad Compatibility

This display supports both HDMI and Type-C dual output interfaces, making it compatible with a wide range of devices,including LattePanda, Raspberry Pi 4B/5, and NVIDIA series single-board computers.It is suitable for gaming, travel, graphic design, and other scenarios that require a high-quality display.

10.5-Inch Display Interface Diagram

Applications

• Portable Coding and Development
• Travel-Friendly Gaming Setup
• On-Site Fieldwork Data Review
• Interactive Presentations for Small Groups
• Mobile Photography and Videography Monitor

Specification

• Display Size: 10.5 inches
• Panel Type: IPS
• Backlight: LED
• Power Input: 5V via Type-C
• Resolution: 1920 x 1280 pixels
• Brightness: 400 cd/m²
• Aspect Ratio: 15:10
• Contrast Ratio: 1500:1
• Color Gamut: 100% RGB
• Refresh Rate: 60Hz
• Viewing Angle: 178° (horizontal/vertical)
• Touch Technology: 10-point capacitive touch
• Active Area: 222.048 mm (W) x 148.032 mm (H)
• Pixel Pitch: 0.11565 mm x 0.11565 mm
• Speakers: 2 x 1W (8O)
• Operating Temperature: 0 to 40°C
• Operating Humidity: 10% to 85% RH (non-condensing)
• Dimensions: 232 mm x 162 mm x 8.5 mm
• Net Weight: 400g

Parts List

• 10.5-inch 1920*1280 LED touch display (with leather case) x1
• Type-c to USB A cable x1
• Mini HDMI to HDMI cable x1
• Mini HDMI to Micro HDMI cable x1
• Dual-head Type-C cable x1
• Power adapter (with UL certification) x1
