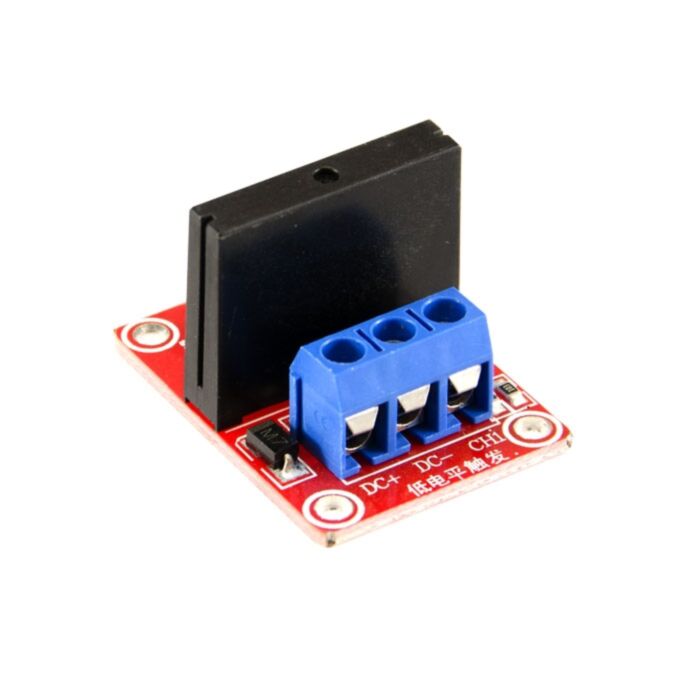

1 Channel Solid State Relay Module (DC Control, AC Load)

Rating:
100% of 100
SKU: CE05352 Brand: Core Electronics

This breakout module gives you access to a single channel solid state relay that can be switched with 3-5VDC

$4.75 AUD, inc GST
$4.32 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 29th of Jul

Quantity Discounts:

  • 5-15 $4.24 (exc GST)
  • 15+ $4.10 (exc GST)
- +

10 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Warning: this product if used with high voltages (such as 240VAC) requires a license to work with in most regions.

This single-channel solid state relay module provides you access to all the pins of a solid-state relay via Screw terminal blocks onboard. This particular relay likes to be controlled using a 3-5VDC source and uses low level triggering. This means that if a voltage of 0-2VDC is detected on the DC+/- pins onboard the relay will be in a triggered state.

Note: Switches AC loads only.

This module specifcally used an Omron 5V solid state relay 240VAC/2A, output with resistance fuse 240ACV/2A.

The entire module is 55mm x  33mm x 25mm (length * width * height).

Input power: 3.3-5VDC

Input control signal voltage:

  • (0-2.5V state low level relay ON)
  • (3-5V state high level relay OFF)

Input section:

  • DC+: Connect the positive pole of the power supply (powered by the relay voltage)
  • DC-: connected to the negative pole of the power supply
  • CH1: Relay module signal trigger terminal (low level trigger is valid)

This product is listed in:

Components & Parts>Relays>Solid State Relays
