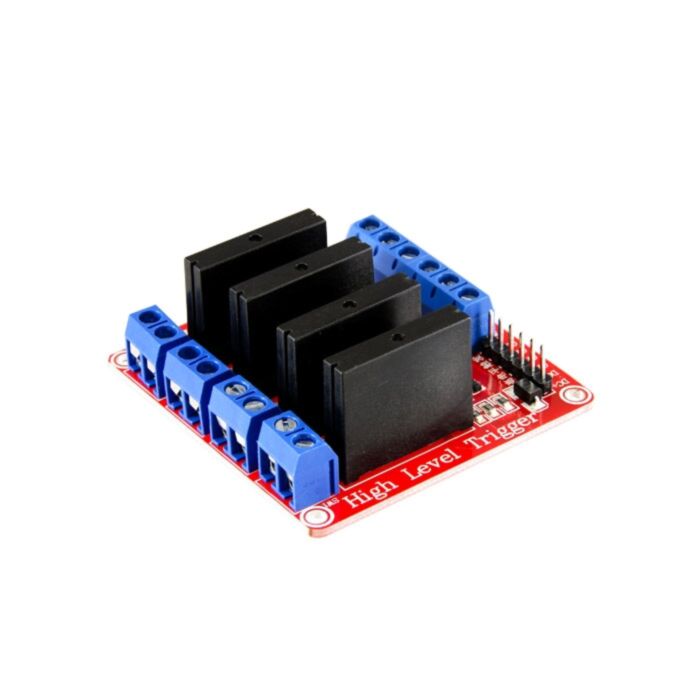

4 Channel Solid State Relay Module (DC Control, AC Load)

Rating:
100% of 100
SKU: CE05340 Brand: Core Electronics

This breakout module gives you access to a 4 channel solid state relay that can be switched with 3-5VDC

$16.30 AUD, inc GST
$14.82 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 15th of Nov

Quantity Discounts:

  • 5-15 $14.52 (exc GST)
  • 15+ $14.08 (exc GST)
- +

6 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Warning: this product if used with high voltages (such as 240VAC) requires a license to work with in most regions.

This single-channel solid state relay module provides you access to all the pins of a solid-state relay via Screw terminal blocks onboard. This particular relay likes to be controlled using a 3-5VDC source and uses low-level triggering. This means that if a voltage of 0-2VDC is detected on the DC+/- pins onboard the relay will be in a triggered state.

Specifications

  • Uses an Omron 5V solid state relay 240VAC/2A, output with resistance fuse 240VAC/2A. Switches AC loads only.
  • The entire module is 57mm x  55mm x 25mm (length * width * height).
  • Input power: 3.3-5VDC
  • Input control signal voltage:
    • (0-2.5V state low level relay ON)
    • (3-5V state high level relay OFF)
  • Input section:
    • DC+: Connect the positive pole of the power supply (powered by the relay voltage)
    • DC-: connected to the negative pole of the power supply
    • CH1: Relay module signal trigger terminal (low level trigger is valid)
    • CH2: Relay module signal trigger terminal (low level trigger is valid)
    • CH3: Relay module signal trigger terminal (low level trigger is valid)

    • CH4: Relay module signal trigger terminal (low level trigger is valid)
