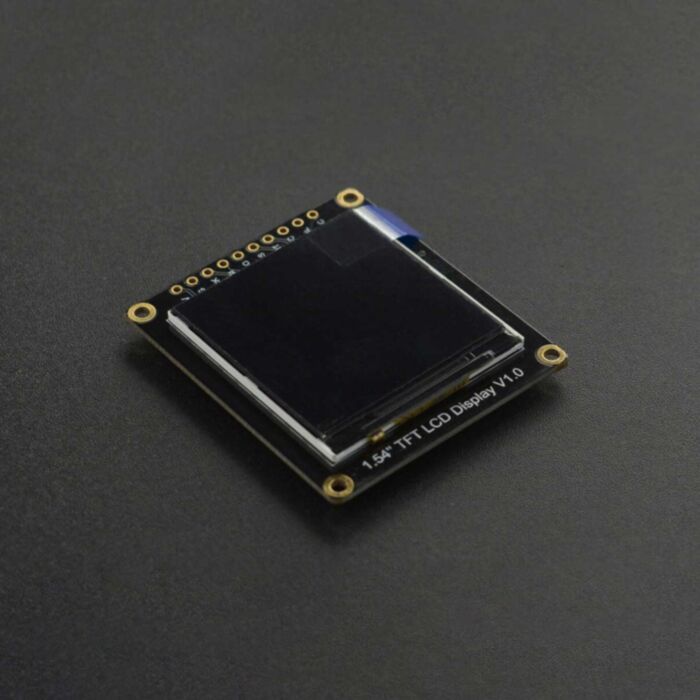

1.54 240x240 IPS TFT LCD Display with MicroSD Card Breakout

SKU: DFR0649 Brand: DFRobot

This display module features high resolution, low power consumption, wide-angle and easy wiring. With a small size of 1.54”, it offers 240x240 resolution. The module...

$27.20 AUD, inc GST

$24.73 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 03 and Feb 06

Quantity Discounts:

10-25 $23.74 (exc GST)
25+ $23.00 (exc GST)

This display module features high resolution, low power consumption, wide-angle and easy wiring. With a small size of 1.54”, it offers 240x240 resolution. The module employs the IPS screen, which performs excellently in the view angle (80/80/80/80). It supports SPI(4-wire) communication mode and GDI port (work with main-controllers with GDI port), plug, and play. This product can be used in many display applications: waveform monitor display, electronic gift box, electronic weather decorations, etc.

The 1.54” LCD module can be powered by 3.3V~5V, and the maximum power consumption is about 24Ma. It is compatible with multiple main-controllers like UNO, Leonardo, ESP32, ESP8266, FireBeetle M0, etc. When working with M0, the GDI interface should be used, which could effectively reduce wiring steps. Besides, there is an onboard MicroSD card slot for displaying more pictures.

Note: MicroSD Card is not included, click here to buy one.

Features

Wide Angle of View
High Resolution
GDI Interface: plug and play
Onboard MicroSD card slot

Applications

Wearable devices
MP3/MP4
Weather Display

Specification

Operating Voltage: 3.3V~5V
IPS Angle of View: 80/80/80/80
Color Depth: 16-bit (RGB565)
Pixels: 240 × 240
Connection Port: SPI
Driver Chip: ST7789
Brightness: 250 (Typ) cd/m2
Full-screen Power Consumption: about 17mA(3.3V) 17mA(5V)(Typ)
Operating Temperature: -30°C ~ +70°C
Display Area: 27.72×27.72 mm
Mount Hole Diameter: 2mm
Weight: 19g

Documents

Product wiki

Parts List

1.54”240x240 IPS TFT LCD Display with MicroSD Card Breakout x1
2.54-10P Single-row Black Pin x1
FPC0.5-18PIN Flex Flat Cable Reverse Direction 10cm x1
