0.5 Inch OLED display Arduino shield (Seeed Studio)

Rating:
100% of 100
SKU: SS308020004 Brand: Seeed Studio
OCELL is a 0.5 inch OLED module designed as a Arduino shield and also available for other micro controllers . It is the smallest Arduino display module...
$36.20 AUD, inc GST
$32.91 AUD, exc GST

Quantity Discounts:

  • 10-25 $31.59 (exc GST)
  • 25+ $30.61 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

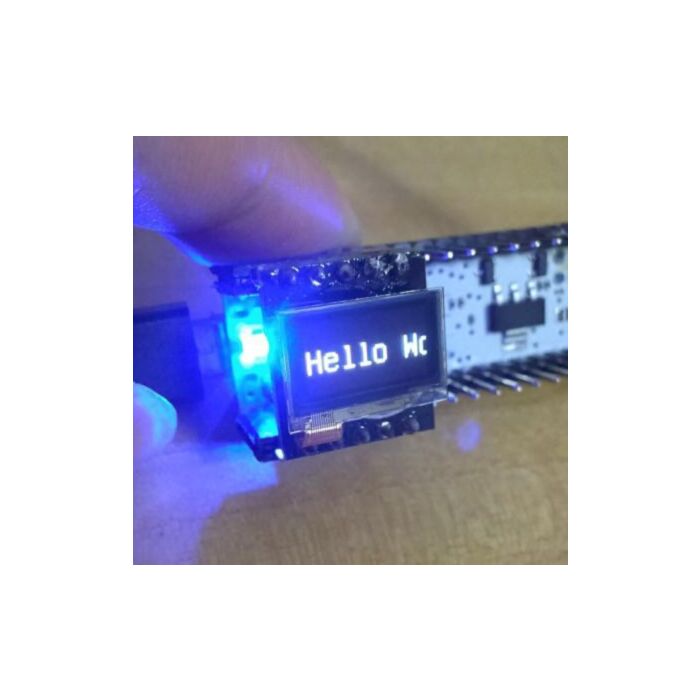

OCELL is a 0.5 inch OLED module designed as a  Arduino shield and also available for other  micro controllers . It is the smallest Arduino display module you can find so far.

You could connect it to Ardunio micro directly without doing any PCB layout and also available for other controllers . It is a good choice for a DIYer to make a project which need a tiny COOL OLED display.

Features

  • The smallest size in all Arduino display modules so far.

  • Very high contrast and brightness.

  • Very low power consumption

  • No backlight required

  • Supported by U8glib library

High light

These OLED displays are small, only about 0.5" diameter, but very readable due to the high contrast (450cd/m^2 brightness). This display is made of 60x32 individual white OLED pixels, each one is turned on or off by the controller chip. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast and very low power consumption.



Specification

  • PCB dimensions: 17.8mm X 15.5mm

  • Screen size: 0.5 (inch) W. H: 15.30x10.20 mm

  • Color: Monochrome (white)

  • OLED  type: PM -OLED

  • OLED driver: LD7032

  • Pixels : 60 x 32

  • Contrast: 2000: 1

  • Communication: SPI, I2C

Note

  • 1 pc OCELL includes: 1x module PCB , 1x OLED display , 1x10 pins header

  • Does not include: Arduino



Documents
