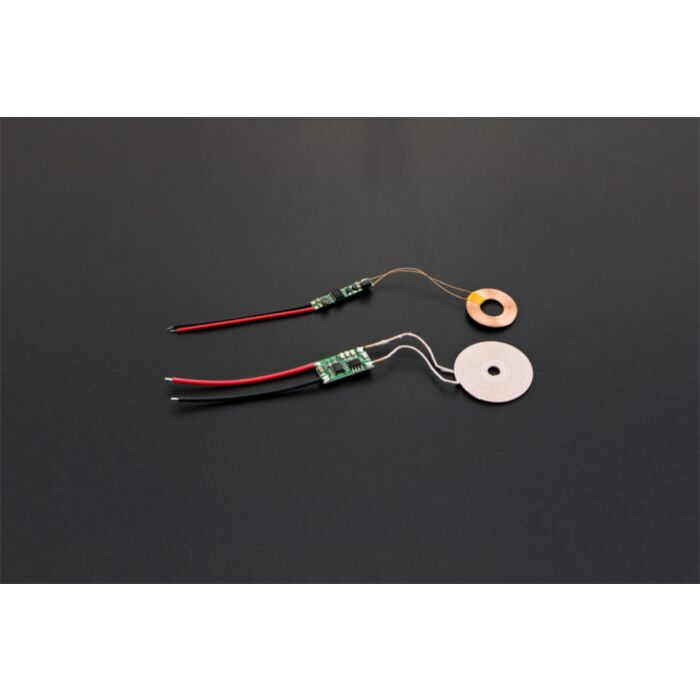

Wireless Charging Module 5V/300mA

SKU: DFR0363

$12.40 AUD, inc GST
$11.27 AUD, exc GST

More Views

Wireless Charging Module 5V/300mA
12.4 AUD

SKU: DFR0363

$12.40 AUD, inc GST
$11.27 AUD, exc GST
In stock, with a short lead time. 28 units dispatch in 3 to 5 days (in addition to the shipping method you choose). Our timing and stock is accurate. Delivery to you by Fri, 27th of Oct with Express Post within Australia.

Introduction

Wireless charging uses an electromagnetic field to transfer energy between two objects. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device.

This is a new wireless charging module, which oculd provides [email protected] (MAX 600mA) power output. It is using the new technology "resonant magnetic coupling, which will reduce the electricity consumption during power transmission. The transfer efficiency could arrive 90%. It could meet your most project requests.

5V/1A also available (DFR0362)

FEATURES

  • Stable Power Supply
  • Insulation Coil
  • Compact Design

Specification

  • Chip on Board: XKT-412
  • Operating Voltage (Input): 5V
  • Operating Voltage (Output): [email protected] (Max: 600mA)
  • Transmitting Terminal Size: 33mm(Outer diameter)*5mm(Inside diameter)*1mm(Thickness)
  • Receiving Terminal Size: 21mm(Outer diameter)*10mm(Inside diameter)*0.5mm(Thickness)
  • Operating Distance: 2-10mm

Documents

Parts List

  • Transmitting Eodule  x1
  • Receiving Eodule  x1
