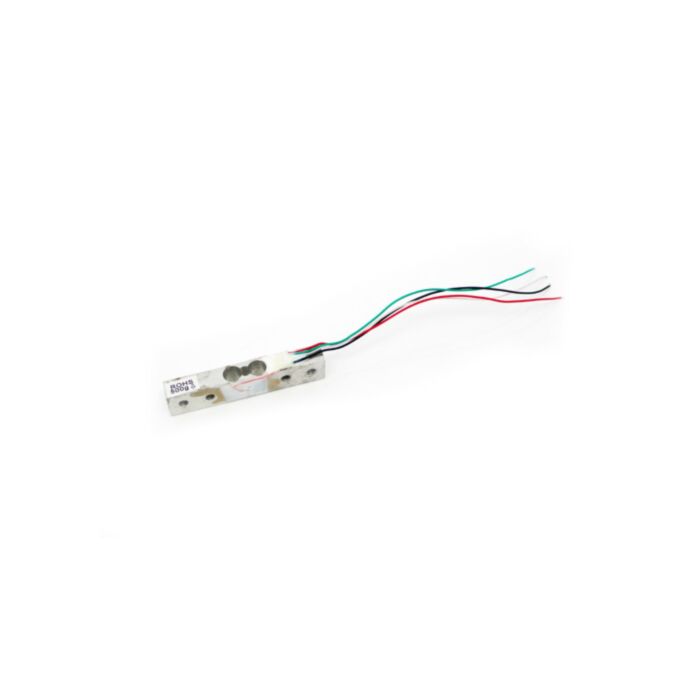

Applicable to electronic scale, price computering scale, electronic platform scale, digital scale; parcel post scale, electronic balance and all varieties of commercial scales by single load cell.
Capacity g 500g
Output sensitivity mv/v 0.5±0.1
Nonlinearity %.F.S 0.05
Hysteresis %F.S 0.05
Repeatability %F.S 0.05
Creep(30min) %.F.S 0.05
Temperature effect on sensitivity %F.S/10℃ 0.05
Temperature effect on zero %F.S/10℃ 0.05
Zero balance %F.S ±0.5
Input resistance Ω(ohms) 1120±10
Output resistance Ω(ohms) 1000±10
Insulation resistance MΩ(ohms) ≥2000
Recommended excitation voltage v 5v
Method of connecting wire red： Exc + black： Exc –
green： Sig + white：Sig -
Dimension(mm): 45 x 9 x 6
Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
Documentation and Resources:
