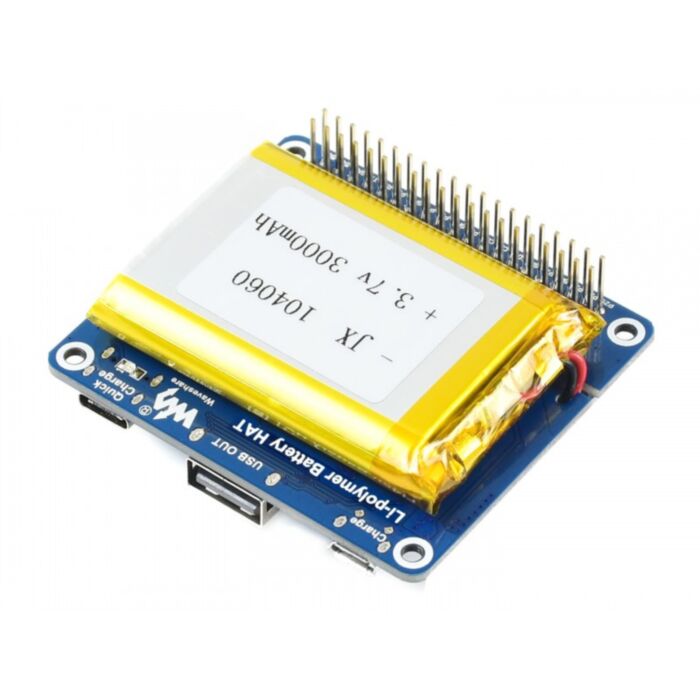

Li-polymer Battery HAT, 5V Output, Quick Charge

SKU: WS-17076 Brand: Waveshare

Delivers 5V from a 3.7V Li-polymer pack to a Raspberry Pi with bi-directional quick charge, and includes protection and capacity LEDs for safe DIY use.

$31.95 AUD, inc GST

$29.05 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $27.88 (exc GST)
25+ $27.01 (exc GST)

Power your Raspberry Pi from a high-capacity Li‑polymer cell with a compact HAT that combines SW6106 power‑bank management, embedded protection and multi-protocol quick charge support. It delivers a regulated 5V output for Pi projects, portable displays and other 5V USB devices while charging the battery when a supply is present.

Ideal for mobile prototyping, short field trials and bench experimentation where longer run time and higher loads are required than smaller cells provide. Note: this HAT is not a true UPS — the Raspberry Pi will restart when you connect or switch the HAT on.

Technical Specifications

Power management: SW6106 power bank solution with bi-directional quick charge
Supported quick charge protocols: PD, QC, FCP, PE, SFCP
Output voltage: 5 V regulated
Charge input voltage: 5 V (via USB Type-C or micro USB)
Battery type: 3.7 V Li‑polymer (4.2 V when fully charged)
Battery capacity: 3000 mAh (MSDS certified)
Connectors on board: Raspberry Pi GPIO connector, PH2.0 battery connector, USB Type‑C (charge/power), USB Type‑A (5 V output), micro USB (charge)
Indicators: 5‑LED battery capacity and charging status, dedicated quick charge LED
Control: power output control switch — click for on (5 V output), double click for standby (no output)
Dimensions: 65.0 mm x 56.5 mm
Mounting holes: 3.0 mm
Onboard protections: reverse polarity, overcharge and short circuit protection
Maximum load current: about 1.8A (with the actual measured data of the battery, the power management chip can actually output up to 4A current).

Additional Resources

Product page and related power HATs: see the UPS HAT for true UPS behaviour at /ups-hat.htm
Manufacturer development wiki and technical notes: www.waveshare.com/wiki/Li-polymer_Battery_HAT
Search compatible Li‑polymer batteries and accessories: /catalogsearch/result/?q=Li-polymer+battery

What’s Included

Li‑polymer Battery HAT board with SW6106 power management and onboard protection circuitry
Built‑in 3.7 V 3000 mAh Li‑polymer battery
