Waterproof Mirror Reflection Photoelectric Sensor Switch (10~100cm)

SKU: SEN0580 Brand: DFRobot

The waterproof mirror reflection photoelectric switch detects transparent objects within a distance of 10cm to 100cm and features a learning function...

$33.95 AUD, inc GST

$30.86 AUD, exc GST

Available with a lead time
Expect dispatch between May 29 and Jun 02

Quantity Discounts:

10+ $29.63 (exc GST)
25+ $28.70 (exc GST)

What is Mirror Reflection Photoelectric Sensor Switch?

A mirror reflection photoelectric sensor switch is a type of photoelectric sensor that uses a reflector to detect the presence or absence of an object.

It works by emitting a beam of light from an infrared LED towards a reflector. When an object interrupts the beam of light, the sensor detects the change in the amount of light received by the photodetector. This change in light level is then processed by the sensor's internal circuitry to produce an output signal that can be used to trigger an action or event.

Product Introduction

This photoelectric sensor is able to detect various transparent or semi-transparent objects and operates on a wide voltage range of DC 10V-30V. Typically, it’s used with a reflector and can detect objects within a distance of 10cm to 100cm.

The device is equipped with a learning function button(SmartTune) that allows users to set its sensitivity with the button during initial installation so as to ensure optimal performance. Align the sensor with the reflector, long pressing the SmartTune for over 5s, and release it when the indicators flash alternately, then the setting is successful and users can get the optimal sensitivity.

Besides, lightly pressing SmartTune can switch between normally open and normally closed NPN and PNP types, meeting different scenario requirements. The sensor features short circuit protection, reverse polarity protection, over-current protection, surge protection, and dual independent output protection for safe and reliable use.

Basic Settings

Normally Open (NO) & Normally Closed (NC) Settings

Short press the SmartTune button to set the NO and NC modes.

Status	No object detected	Object detected
NO	Stability indicator is on, operation indicator is off, output disabled	Stability indicator is on, operation indicator is on, output enabled
NC	Stability indicator is on, operation indicator is on, output enabled	Stability indicator is on, operation indicator is off, output disabled

Note: The stability indicator is green, and the operation indicator is orange. After powering the sensor on, if the stability indicator is steady on, then the setting is successful; if it is steady off, then the setting failed; if the stability and operation indicators are flashing rapidly, it indicates a short circuit output.

Maximum Sensitivity Setting

Type	Steps	Adjustment	Applicable Scenario
Reflective	1	Fix the device and the reflector, then with no object detected, long press the SmartTune button until the stability indicator and the operation indicator flash alternately.	Suitable for detecting no-reflection transparent or non-transparent objects.
Reflective	2	Release the SmartTune button to complete the setting. (If the device vibrates, wait for one vibration period before executing this step.)

Installation Diagram

Note: The transmitter should be installed directly facing the reflector, and the distance between the reflector and the sensor should be greater than 100mm.

The lead wire is 2m pure copper flexible cable.

Wiring sequence: brown for positive, blue for negative, black for PNP, and pink for PNP.

Features

Detects various transparent or semi-transparent objects

Operates on a wide voltage range of DC 10V-30V

Can detect objects within a distance of 10cm to 100cm when used with a reflector

Equipped with a learning function button (SmartTune)

Can switch between normally open and normally closed NPN and PNP types

Short circuit protection and dual independent output protection

Applications

Detects transparent/semi-transparent objects

Detects objects within 10-100cm with reflector

SmartTune sets sensitivity

Switches between NPN and PNP types

Various protection features for safe use.

Specification

Control Output: 100mA (30V DC)

Control Input: 10V-30V DC

Rated Current: 15mA

Detection Distance: 1000mm

LED Source: Red spotlight source

Response Time: 5ms

Hysteresis: 15%

Repeatability: 1mm

Protection Circuit: Reverse polarity protection, over-current protection, surge protection, and dual output independent protection

Indicators: Orange LED (operation indicator), Green LED (stability indicator)

Light Spot Diameter: F2mm to F25mm (gradually increasing from 1mm to 1000mm)

Operating Environment: -10°C to 60°C, 35%RH to 65%RH

IP Rating: IP24

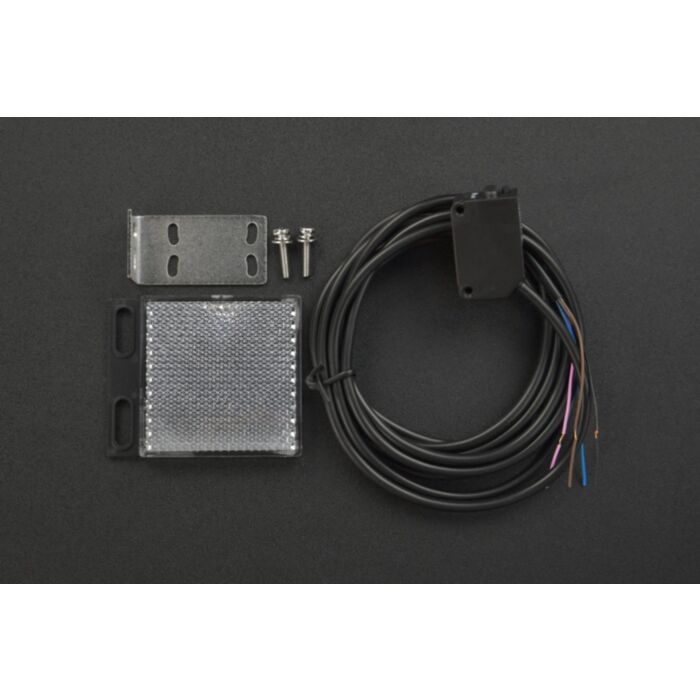

Parts List

Mirror-reflection-photoelectric-switch × 1

Reflector × 1

M3 × 0.5 Screw × 2

Installation Plate × 1
