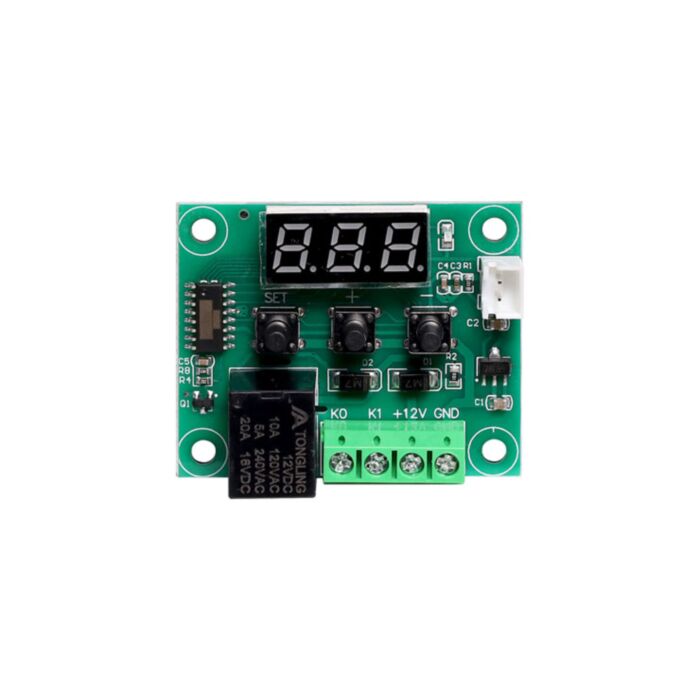

W1209 High Precision Temperature Control Module
Available with a lead time
Expect dispatch between Apr 21 and Apr 25
Quantity Discounts:
- 10+ $8.68 (exc GST)
- 25+ $8.41 (exc GST)
The Z6317 High Precision Temperature Control Module offers a compact, feature-rich solution for managing heating or cooling systems with accuracy and reliability. Designed for integration into a wide range of automation and DIY projects, this self-contained controller monitors temperature and toggles a relay based on user-defined settings. With fine-tune control over hysteresis, delay, and operating thresholds, it’s a valuable tool for everything from greenhouse climate regulation and fermentation control to 3D printer beds and incubator temperature maintenance.
Features & Specifications
- Display: 3-digit LED temperature display
- Modes: Selectable heating or cooling operation
- Temperature Sensor: Waterproof NTC sensor with -30°C to +110°C range, 0.1°C accuracy
- User-Configurable Parameters: Temperature trip point, hysteresis, delay timing, and operational limits
- Relay Output: Rated for 120VAC @ 10A or 14VDC @ 10A
- Power Supply: 12V DC operation
How to Use
The Z6317 module is user-friendly and easy to configure. Once powered with a 12V DC supply, the current temperature is displayed on the LED screen. Users can then set the desired trigger temperature for heating or cooling mode, adjust the hysteresis to prevent relay chatter, and define a delay time to avoid unnecessary toggling.
- Connect the waterproof temperature sensor to the module.
- Wire the relay output to the target device (e.g., heater, fan, cooler).
- Use the onboard buttons to configure setpoint temperature, mode, and other parameters.
- The relay will automatically switch based on the programmed thermal threshold.
What’s in the Box
- 1 × Z6317 High Precision Temperature Control Module
- 1 × Waterproof NTC temperature sensor
Compatibility
This module is suitable for most resistive and inductive loads including heating elements, fans, pumps, and solenoids within the rated voltage and current limits. It is commonly used in hobbyist automation, environmental control systems, aquaponics setups, and educational lab equipment.
