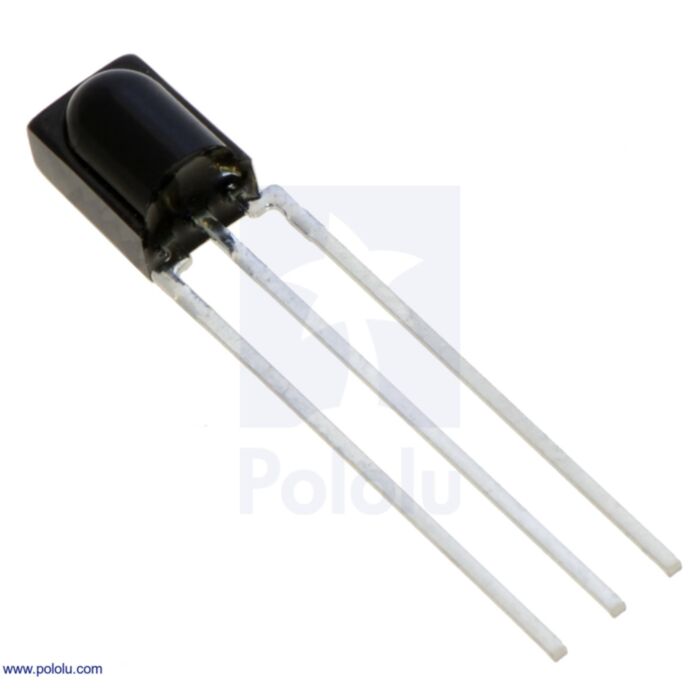

Vishay TSOP38438 IR Receiver Module, 38kHz

Rating:
100% of 100
SKU: POLOLU-2471 Brand: Pololu
The Vishay TSOP38438 is a general-purpose modulated IR receiver for IR-based remote-control projects. It features a wide operating voltage range of 2.5 V...
$4.20 AUD, inc GST
$3.82 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 26 and Dec 30

Quantity Discounts:

  • 10-25 $3.66 (exc GST)
  • 25+ $3.55 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This IR demodulator from Vishay is a general-purpose receiver for IR-based remote-control projects. It is intended as detector for data formats that are modulated at 38 kHz and have at least 10 cycles/burst; popular IR-codes that meet these requirements are NEC, Sharp, and r-step (our Mini IR Remote Control uses NEC encoding, so it works well with the TSOP38438). The module’s output signal can be directly connected to a microcontroller; no additional external components are required. See the TSOP38438 datasheet (132k pdf) for more information.

For a similar IR detector that is tuned for a 56 kHz carrier frequency, see the Vishay TSOP34156.

Modulated IR detector comparison

Part TSOP34156 TSOP38438 TSSP58P38 TSSP58038
Intended function IR remote control brightness/proximity sensing predictable modulated IR presence sensing
Modulation frequency 56 kHz 38 kHz 38 kHz 38 kHz
Gain (sensitivity) automatic but inaccessible automatic, predictable fixed high gain
Output binary (data) analog (pulse width) binary (on/off)
Update rate a few kHz a few Hz a few kHz

Specifications

  • Operating Voltage: 2.5 V to 5.5 V
  • Carrier Frequency: 38 kHz
  • Package: Through-hole with 0.1" lead spacing

See the TSOP384 datasheet (132k pdf) for more detailed specifications.
