UVC Ultraviolet Germicidal Lamp Strip

Skip to the beginning of the images gallery

UVC Ultraviolet Germicidal Lamp Strip

SKU: FIT0948 Brand: DFRobot

The powerful UVC germicidal lamp strip equipped with a flexible FPC circuit board. Its compact size and strong germicidal ability make it perfect for...

Special Price $13.45 AUD, inc GST

Regular Price $17.12 AUD, inc GST

$12.23 AUD, exc GST

Special pricing ends 05 August 2024

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 27 and May 28

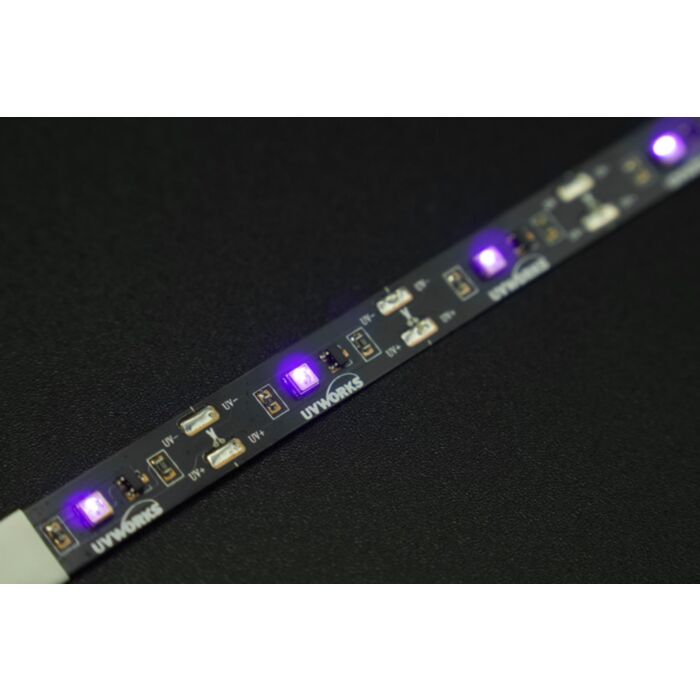

This is a UVC ultraviolet germicidal lamp strip with a wavelength of 275nm, belonging to short-wave ultraviolet rays, with strong germicidal ability, two-wire system, 12V power supply, flexible FPC circuit board, which can be bent, cut and better embedded in various scenes.

The ultraviolet light bar can be DIY small and simple ultraviolet germicidal lamp, which can be used for sterilization in small scenes, such as mite removal in wardrobes, mite removal in shoe cabinets, mite removal in homes, identification of genuine and counterfeit banknotes, etc.

Note: Strong ultraviolet light is harmful to eyes and skin.

Please don't look at the light naked, and don't shine the light on your skin for a long time.

What is UVC?

UVC wavelength below 280mm, also known as short-wave sterilization ultraviolet. The penetration ability is weak, so it can't penetrate most transparent glass and plastic. Short-wave ultraviolet rays do great harm to human body. Short-time irradiation can burn the skin, and long-term or high-intensity irradiation can also cause skin cancer. Short-wave ultraviolet rays can be used as ultraviolet germicidal lamps.

Ultraviolet wavelength

Figure: Ultraviolet Wavelength

Features

UVC wavelength 275nm, Strong germicidal ability

Flexible FPC circuit board: Bendable and cuttable

Two-wire system, Easy to install with 12V power supply

Applications

Small-scale sterilization

Mite removal in wardrobes

Shoe cabinets sterilization

Banknote verification

Specification

Power supply voltage: 12V

Operating current: 170mA

Power: 2W

Wavelength: 275nm

Number of lamp beads: 5

Wiring description: red wire-positive electrode, black wire-negative electrode.

Length: PCB board length 16cm, wide 1cm,line length 11cm and total length 27cm.

Working temperature: -30° ~ 60°C

Storage temperature: -10° ~ 40°C

Storage humidity: 40%~65%RH

Parts List

UVC Ultraviolet Germicidal Lamp Strip LED x1
